TFT LCD display module ASK0128NA01N2424R06C02touch screencolor240 x 240
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, touch screen
- Type
- color
- Format
- 240 x 240
- Screen size
- 1.28"
- Applications
- industrial, HMI, with encoder
- Interface
- RGB, UART
- Structure
- round
- Other characteristics
- custom, with built-in electronics, PCBA
Description
Product overview
Compact circular 1.28-inch TFT LCD knob display by ASK, model ASK0128NA01N2424R06C02. Designed for embedded HMI and industrial/embedded interfaces, the module integrates a rotary encoder (knob) and supports customizable touch input and flash memory options.
Technical specifications
Mechanical & customization
Packaging and delivery

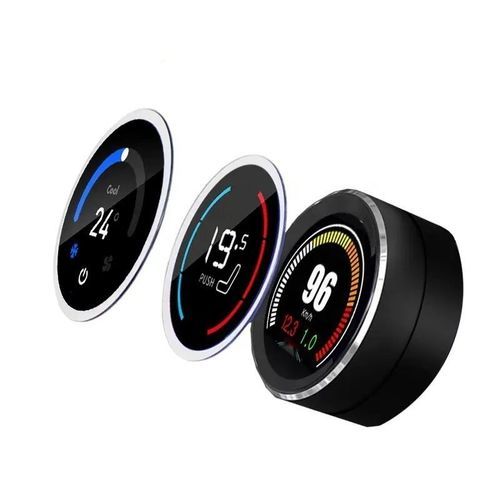

Product images
Multiple product and detail images provided showing the circular 1.28" knob display from several angles, module/PCB details and mounting references.
Compact circular 1.28-inch TFT LCD knob display by ASK, model ASK0128NA01N2424R06C02. Designed for embedded HMI and industrial/embedded interfaces, the module integrates a rotary encoder (knob) and supports customizable touch input and flash memory options.
Technical specifications
- Display size: 1.28 inch
- Resolution: 240×240
- Display type: TFT / TFT LCD
- Brightness: 350 cd/m²
- Display color: RGB (full color)
- Operating temperature range: -10 to 65 °C
- Communication: UART protocol (host communication)
- Touch customization: Supported
- Flash capacity: Customizable
- Development software: OS/RTOS
Mechanical & customization
- Shell material: Aluminum alloy
- Surface treatment: Anodizing
- Custom shell color: Supported
- Integrated rotary encoder (knob) for user input
- Module and PCB available for integration
Packaging and delivery
- Selling units: Single item
- Single package size: 15 x 15 x 10 cm
- Single gross weight: 1.000 kg
- Place of origin: Guangdong, China
- Supplier type: Factory
Product images
Multiple product and detail images provided showing the circular 1.28" knob display from several angles, module/PCB details and mounting references.
