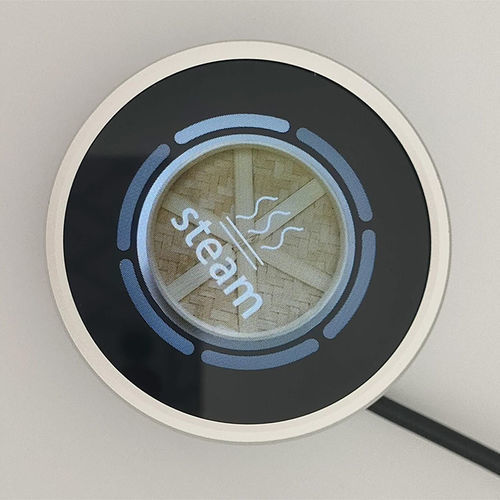

TFT display module ASK1.28IPStouch screencapacitive touch screen
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT, IPS, touch screen, capacitive touch screen, Circular Knob
- Type
- color, graphic, dot-matrix
- Format
- 240 x 240
- Screen size
- 1.28"
- Applications
- industrial, instrumentation, for control panels, HMI
- Interface
- UART
- Structure
- compact, round
- Configuration/mounting
- panel-mount, built-in
- Other characteristics
- with built-in electronics, smart
Description
Overview
Key features
Technical specifications
Mechanical & packaging
Applications & integration notes
Ordering & customization
- 1.28-inch circular IPS TFT LCM display with integrated control knob for intuitive HMI and smart device interfaces.
- Model: ASK1.28Knob. Suitable for embedded panels, industrial HMI, smart home controllers and wearable instruments.
Key features
- Resolution: 240×RGB×240 pixels
- Display technology: TFT with IPS viewing angle
- Touch: Capacitive touch panel
- Brightness: 500 nits
- Color depth: 262K colors
- Response time: 12 ms
- Driver IC: Gc9a01n
- Interface: UART (serial)
- Control: Integrated rotary knob for parameter selection and navigation
- Drive mode: Multiplex drive, row/column-driven DOT-matrix
Technical specifications
- Model NO.: ASK1.28Knob
- Type: LCM (circular display)
- Resolution: 240×RGB×240
- Color depth: 262K
- Display technology: TFT (IPS)
- Touch screen type: Capacitive
- Driver IC: Gc9a01n
- Viewing angle: IPS
- Response time: 12 ms
- Brightness: 500 nits
- Interface: UART (serial)
- LCD drive mode: Multiplex drive
- DOT-matrix type: Row/column-driven control
- Operating temperature range: -20℃ to +80℃
- Specification: Glass electronic product, 1.28" display
- Trademark/Brand: ASK
- Origin: China
- HS Code: 8531200000
- Production capacity: 3000 PCS/Month
Mechanical & packaging
- Package size: 7.00 cm × 7.00 cm × 3.00 cm
- Package gross weight: 0.100 kg
- Transport package: Carton
Applications & integration notes
- Designed for industrial HMI panels, smart home control panels, instrumentation and compact embedded systems.
- UART interface allows direct integration with microcontrollers and serial hosts; ensure level compatibility and required firmware/drivers.
- Integrated knob improves operator ergonomics for parameter adjustment and menu navigation.
Ordering & customization
- Customization available on request (interface options, mechanical mounting, firmware). Contact ASK for MOQ, lead times and technical drawings.
- Production capacity: approximately 3000 units/month; actual lead time depends on order size and customization.
