Product Introduction

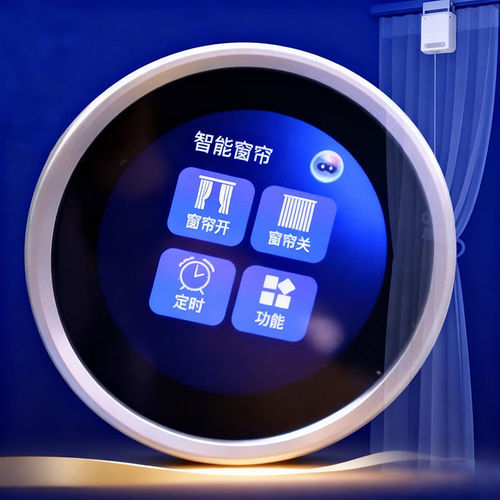

Round IPS TFT LCD touchscreen module designed for embedded devices and compact instrumentation. Available in multiple sizes (1.28"–5.0") and configurable for interface and mechanical requirements.

Product Parameters

• Model NO.: 2.1 knob+LCD
• Type: LCM
• Display Technology: TFT (IPS)
• Response Time: 8 ms
• Brightness: 300 cd/m²
• Color Depth: 65K
• Active Area (AA): Diameter 53.28 mm
• Backlight: LED
• Connection / Interface: 6-pin serial port, Micro USB
• Uart Protocol: 1-lane UART
• User's Protocol / Connector: UART / 6p / 2.0 connector
• Flash Capacity: 128 MB
• SD Flash: No
• Operating Temperature: -20 ~ 70 °C
• Storage Temperature: -30 ~ 80 °C
• Working Humidity: 10%~90%

Packaging & Delivery

• Package Size: 10.00 cm × 10.00 cm × 5.00 cm
• Package Gross Weight: 0.500 kg

Technical specifications

• Model NO.: 2.1 knob+LCD
• Type: LCM
• Display Technology: TFT (IPS viewing angle)
• Response Time: 8 ms
• Brightness: 300 CD/m²
• Color Depth: 65K
• Active Area (AA): Diameter 53.28 mm
• Backlight Mode: LED
• Connection: 6-Pin Serial Port
• Interface: USB (Micro USB)
• Uart Protocol: 1 Lane Uart
• User's Protocol / Connector: Uart / 6p / 2.0 Connector
• Flash Capacity: 128 MB
• SD Flash: No
• Operating Temperature: -20 ~ 70 °C
• Storage Temperature: -30 ~ 80 °C
• Working Humidity: 10%~90%
• Specification: Glass electronic 2.1" display
• Trademark: ASK
• Origin: China
• HS Code: 8531200000
• Production Capacity: 1000 PCS/Month
• Package Size: 10.00 cm × 10.00 cm × 5.00 cm
• Package Gross Weight: 0.500 kg
