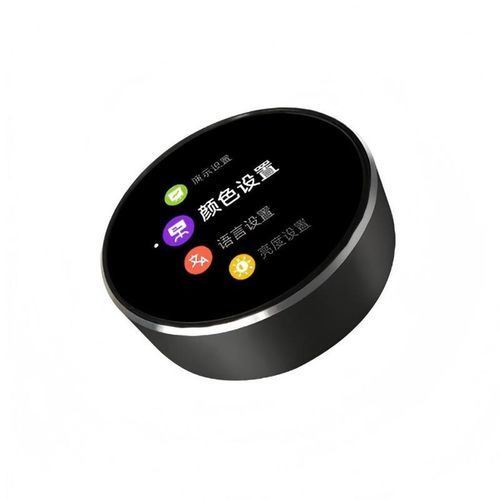

IPS display module ASK0130NA02N3232R04C01

OLEDgraphic320 x 320

Overview
The ASK0130NA02N3232R04C01 is a 1.3-inch industrial OLED display module designed for smart knob interfaces and rotary control panels. It delivers a 320×320 resolution with 350 cd/m² brightness, anti‑glare surface and compact frame dimensions for OEM integration. Ideal for HMI applications where a high-contrast, compact display is required. Brand: Eurotech.

Key specifications

• Display technology: OLED
• Display size: 1.3 inch
• Resolution: 320 × 320 pixels
• Active area: 33.12 mm × 33.12 mm
• Frame dimensions: 35.92 × 38.46 × 1.6 mm
• Brightness: 350 cd/m²
• Contrast ratio: 1000:1 (typ.)
• Panel type: OLED
• Type: IPS
• Viewing angle: 80°/80°/80°/80° (typ.)
• Interface: QSPI, 13-pin
• Surface finish: Anti-glare
• Model identifier: ASK0130NA02N3232R04C01
• Origin: Guangdong, China

Interface & mechanical

• Electrical interface: QSPI (13-pin)
• Mechanical footprint: frame 35.92 × 38.46 mm, thickness 1.6 mm
• Active viewing area suitable for circular/knob mounting

Packaging & delivery

• Packaging: Carton box package
• Port of dispatch: Shenzhen and Hong Kong
• Selling units: Single item

Applications

• Industrial HMI, smart knobs, rotary encoders, control panels and instrumentation
• OEM integration for machinery, instrumentation and professional equipment

Ordering information

• Part number: ASK0130NA02N3232R04C01 — single unit supply
• Contact supplier for volume, lead time and customization options
