TFT display module ASK0125SA01N2424C10C01

IPSdot-matrixcolor

Product overview

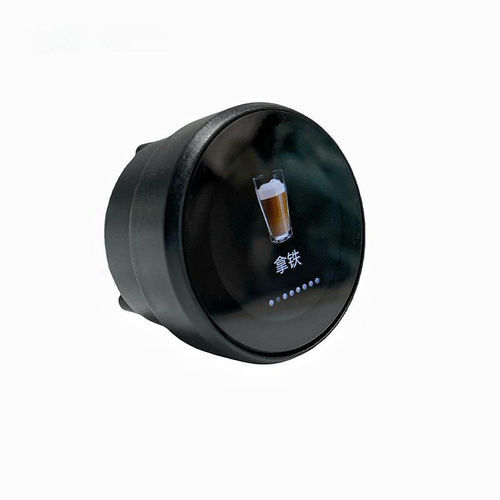

The ASK round knob LCD module is designed for rotary-knob display applications in smart appliances. The module integrates an IPS TFT DOTMatrix graphic panel in the 0.9–2.1 in range, offering 65K color depth, 300 cd/m² brightness and 4 ms response time. It is intended for OEM integration and can be customized to application requirements.

Key specifications

• Model: ASK0125SA01N2424C10C01
• Display type: IPS TFT, DOTMatrix graphic
• Screen size: 0.9–2.1 in
• Response time: 4 ms
• Brightness: 300 cd/m²
• Color depth: 65K
• Module type: Graphic LCM (Row/Column-driven, Multiplex Drive)

Interfaces & electrical

• Connection: 6-pin serial port
• Supported serial interfaces referenced: TBD/TTL/UART
• Additional interface: USB
• Drive mode: Multiplex drive LCD module

Mechanical & packaging

• Specification: Glass electronic product, 2.1" display class
• Package size: 10.00 cm × 10.00 cm × 7.50 cm
• Package gross weight: 0.500 kg
• Transport package: Carton

Ordering & origin

• Trademark: ASK
• Origin: China
• HS Code: 8531200000
• Production capacity: 10,000 PCS/month
