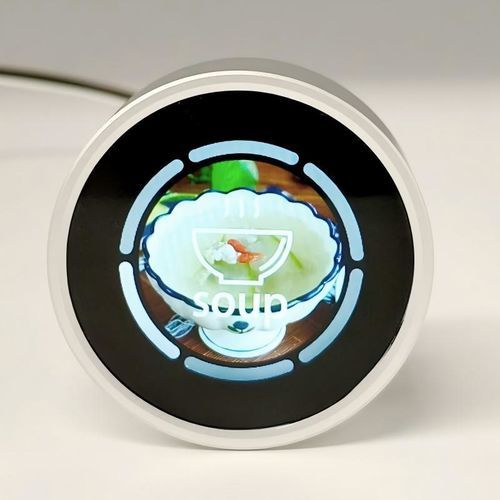

IPS display module ASK0128NA01N2424R06C01

Circular Knobcolor240 x 240

Product overview
1.28-inch IPS circular knob display module designed for smart home and appliance controllers. Model ASK0128NA01N2424R06C01, manufactured by ASK in Guangdong, China. Key features include 240×240 resolution, 500 nits brightness and UART communication interface.

Key specifications

• Type: TFT
• Model number: ASK0128NA01N2424R06C01
• Brand: ASK
• Display type: IPS
• Screen size: 32.4 mm (H) x 32.4 mm (V)
• Display size: 59 x 36 mm
• Resolution: 240 × 240
• Brightness: 500 nits (customizable)
• Viewing angle: Full viewing angle
• Backlight type: Customized
• Driver IC: Customized
• Communication interface: UART (customizable)
• Application: Smart home appliances, appliance controllers
• LCD type / Display mode: Knob screen / smart knob screen
• Operating temperature: Customized
• Place of origin: Guangdong, China
• Supplier type: Original manufacturer

Compatibility & integration
UART-based communication simplifies integration with microcontrollers and appliance control boards. Driver IC and interface options can be customized to match target hardware. Mounting and mechanical interfaces are adaptable for panel or module installations.

Mechanical & packaging
Screen active area and module dimensions are provided for mechanical integration: screen 32.4 mm × 32.4 mm, display area 59 × 36 mm. Selling unit: single item. Single package size: 40 × 40 × 30 cm. Single gross weight: 0.500 kg.

Images & documentation
Multiple product gallery images and detailed illustrations are provided, including front/rear views, angled shots and application scenes to support integration and selection.
