Capacitive touch screen HMI ASK0128NA01N2424R06C01

panel-mountfor integrationTFT LCD

Product overview

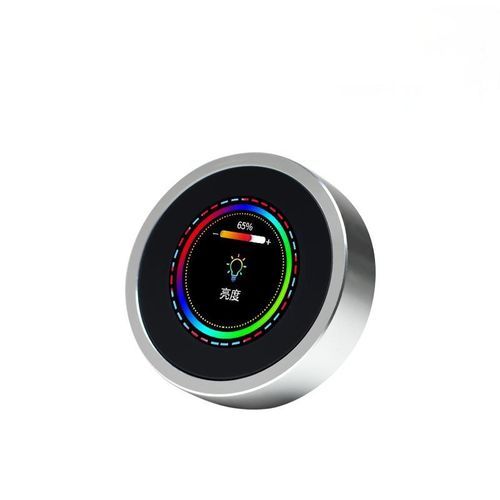

ASK 1.28-inch capacitive round touch knob HMI, model ASK0128NA01N2424R06C01. TFT IPS display with 240×240 resolution; active area 32.4 mm × 32.4 mm; module size 59 × 36 mm. Designed for smart home appliances and switch panel integration.

Technical specifications

• Type: TFT display
• Brand: ASK
• Model: 1.28-inch smart knob screen (ASK0128NA01N2424R06C01)
• Display type: IPS
• Resolution: 240×240
• Active screen area: 32.4 mm (H) × 32.4 mm (V)
• Module display size: 59 × 36 mm
• Viewing angle: full viewing angle
• Display mode: smart knob screen (rotary capacitive HMI)
• Backlight & brightness: customizable
• Operating temperature: customizable
• Communication interface: customizable
• Driver IC: customizable
• Application: smart home appliances and switch panel applications

Customization & interfaces
Backlight, brightness, operating temperature range, communication interfaces and driver IC can be configured to customer requirements. Mounting type and housing options are available on request for panel integration.

Applications & images

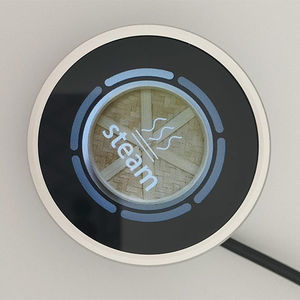

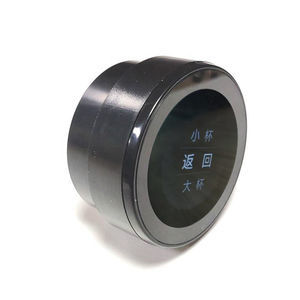

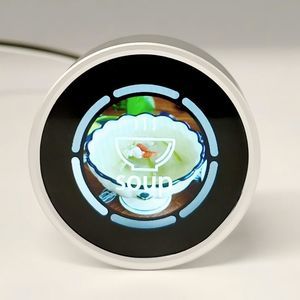

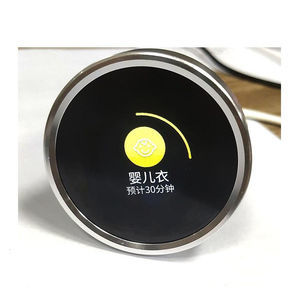

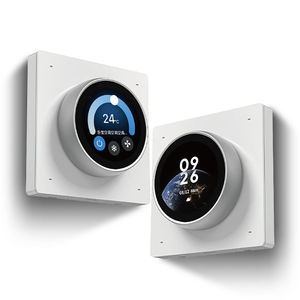

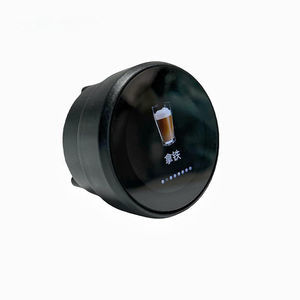

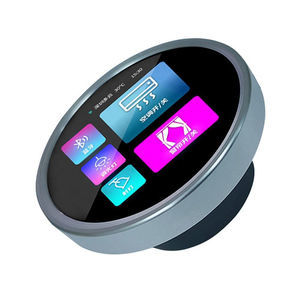

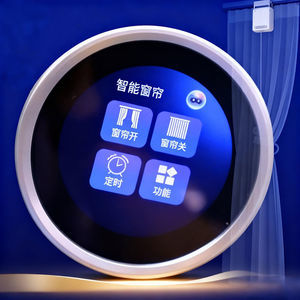

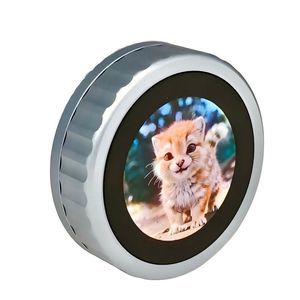

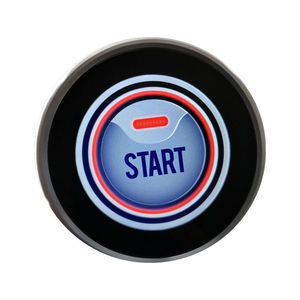

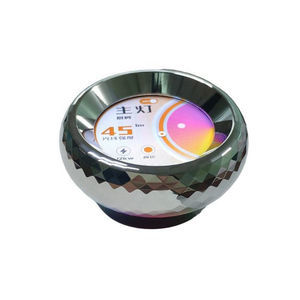

Suited for smart thermostats, control panels, switch interfaces, and other embedded control systems. Multiple illustrative images available showing front view, side profile, PCB integration and example application scenarios.

Packaging & delivery
Selling units: single item. Single package size: 40 x 40 x 30 cm. Single gross weight: 0.500 kg.
