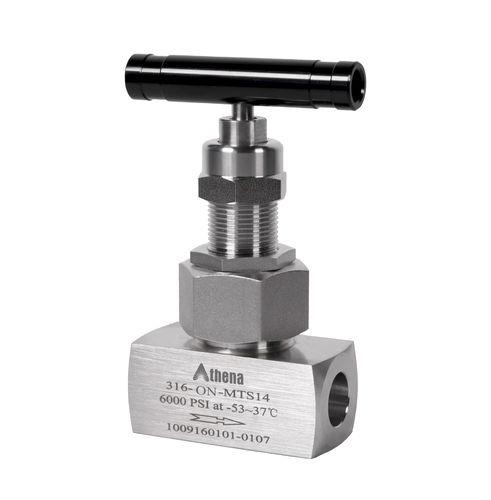

Needle valve ON seriesmanualcontrolshut-off
Add to favorites
Compare this product
Characteristics
- Type
- needle
- Operation
- manual
- Function
- control, shut-off
- Media
- for water, for air, for steam, for compressed air
- Body
- threaded, compact
- Applications
- for industrial applications
- Other characteristics
- compact
- DN
Min.: 3 mm
(0.118 in)Max.: 12 mm
(0.472 in)- Pressure
Max.: 689 bar
(9,993.1 psi)- Temperature
Min.: -53 °C
(-63 °F)Max.: 648 °C
(1,198 °F)
Description
Athena Union-Bonnet Needle Valve
Performance
-Compact design for special extreme working conditions
-Cold rolled threads of compact valve stem
-Non-rotary ball type lower stem and adjustable lower stem available
-Union-bonnet design prevents accidental valve disassembly
-Lubricated stem threads isolated from the process media
-Safety back seat seals in fully open position
-Panel mounting available
-Steady and durable fastening of the valve handle by double lock-pin
Features
Material: 316SS, titanium, other material as request
Working Pressure: Up to 10000 psi (689 bar)
Working Temperature -65℉ to 1200℉（- 53℃ to 648℃）
End Connection Type: Metric and fractional tube fittings , NPT
threads, ISO/BSP threads, weld ends
End Connection Size: 1/8 to 3/4 in., 3 to 12 mm
