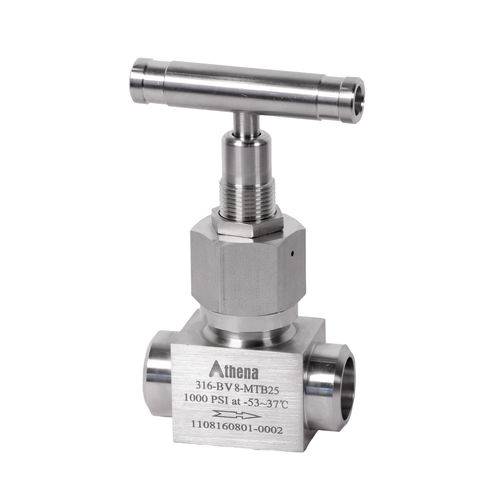

Needle valve BV seriesmanualcontrolshut-off
Add to favorites
Compare this product
Characteristics
- Type
- needle
- Operation
- manual
- Function
- control, shut-off
- Media
- for water, for air, for compressed air
- Body
- threaded, weld, stainless steel, brass, alloy
- Applications
- for industrial applications
- Number of channels
- 2-way
- Other characteristics
- with bellows seal
- DN
Max.: 20 mm
(0.787 in)Min.: 6 mm
(0.236 in)- Pressure
Max.: 68.9 bar
(999.3 psi)- Temperature
Max.: 482 °C
(900 °F)Min.: -27 °C
(-17 °F)
Description
Bellows sealed Valve
Features
-Working Pressure: Up to 1000 psi (68.9 bar)
-Working Temperature: -20℉ to 900℉ （-27℃ to 482℃）
-Hydraulic-formed multilayer metal bellows provides longer life service
-Non-rotary stem tip promise longer life service packing and bellows
-Strictly controlled expansion range ensures longer life service
-Replaceable bellow union and stem tip
-Adjustable, tapered, and ball type stem tips available
-Panel and bottom mounting type available
-Body Material: 316SS, brass, other material as request
-End Connection Size: 1/8 to 1 in., 6 to 20 mm
-End Connection: Metric and Fractional Tube Fittings,
-NPT threads, weld ends, ISO/BSP threads
