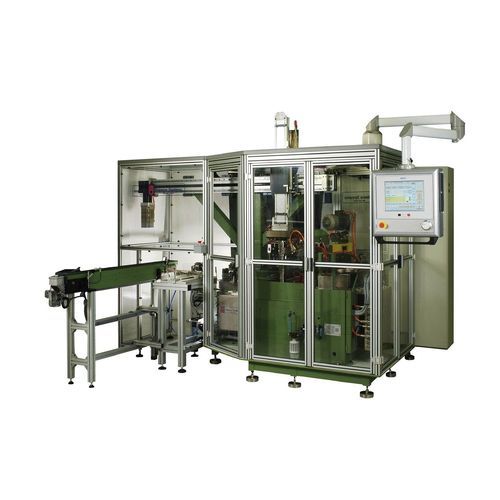

Automatic balancing machine DMK5-I

horizontaldynamicfor rotors

• Fully automatic dynamic balancing machine. • Suitable for balancing automotive alternators rotors and rotors for asynchronous electric motors. • Unbalance correction by one drilling head (for both the planes). • Parts manipulation by “pick and place” with two controlled axis (horizontal and vertical) and with double grippers. • Full range of options to meet all the customer’s requirements. • Automatic set-up. • Highly skilled operator not required • PC based operator interface • User friendly • Easy and fast changeover • High level of reliability • Very easy to maintain • Diagnostic and preventive maintenance programs • High level of repeatability and precision of the unbalance • measurement • It can be easily integrated in any type of production lines • Cycle time: (with two drilling holes per plane) : 25 s • Max sensitivity : 0.1 gmm/kg (0,04 oz.in/lb) • Max production rate: : 140 pcs./hour • Rotors diameter: : 40-120 mm (1,57 – 4,72 in) • Stack lamination height: : 30-130 mm (1,18-5,12 in) • Balancing method: : Axial, Inclined Options • Reject conveyor • Industrial Vacuum cleaner for drilling chips • SPC + SW • Printer • Teleservice
