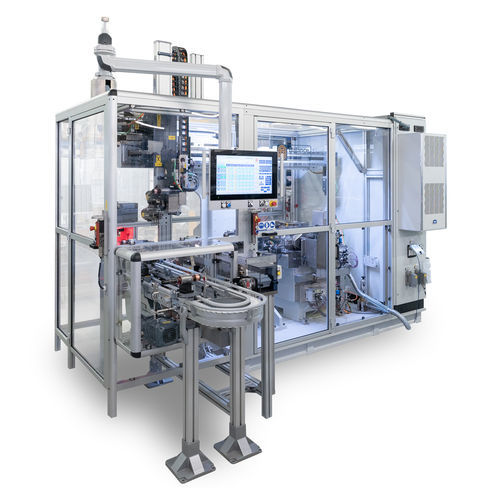

Horizontal balancing machine BMK5

dynamicelectric armatureautomatic

• Fully automatic dynamic balancing machine. Suitable for balancing all types of armatures. • The main applications are in the field of electrical motors for household appliances, electric tools and the automotive industry. • The machine can be delivered (upon request) with “ V “ or polar cutters. • Operator interface by industrial PC (Windows NT). • The main features of machine are its high level of flexibility and rapid changeover. • Modular constructive concept. Parts manipulation by pick and place with double gripper. Standard configuration with milling in lenght and depth. Full range of options to meet all the customer’s requirements. • Automatic set-up • PC based operator interface • Easy and fast changeover • High level of reliability • Diagnostic and preventive maintenance program • User friendly • High level of repeatability and precision of the unbalance measuring • Easy to integrate in any type of production lines • Armatures diameter: : 10-80 mm (0,39 – 3,15 in) • Stack lamination height: : 10-100 mm (0,39 – 3,94 in) • Cycle time: : 14.5 s • Controlled by: : Industrial PC • Measuring accuracy: : 0.1 gmm/kg max (0,04 oz.in/lb) • Power supply: : 380-480 V three-phase 50/60 Hz • Balancing methods: : Polar or vectorial milling in length and depth • Machine dimensions (LxWxH): : 1400 x 3500 x 2000 mm (55,12 x 137,80 x 78,74 in) Options • Reject conveyor • Industrial vacuum system for milling • chips • SPS/SW • Printer • Teleservice • Device for balancing skewed slots armatures (-16/+18)
