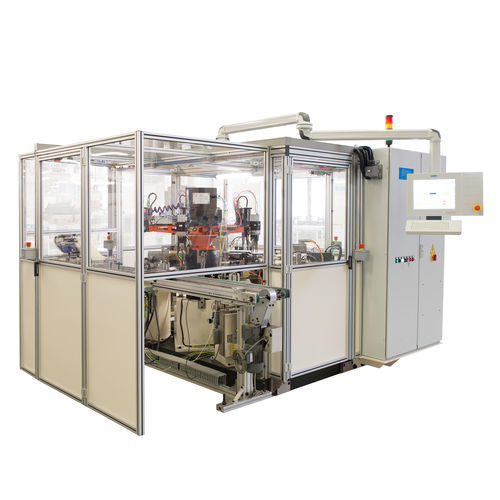

Automatic balancing machine DMK8-R

horizontaldynamicfor electric motor rotors

• Fully automatic balancing machine for high volume production. Specifically developed for balancing brushless rotors and rotors for asynchronous electric motors, in a completely automatic way on two planes (dynamic). Unbalance removal by radial drilling. • Unbalance correction by two drilling heads (one for each plane). • Parts manipulation by rotary cam index unit with 5 arms. • It can be inserted in any type of lines (pallet, step, by loop, etc.). • Operator interface by industrial PC. • High level of flexibility and quick changeover. • Full range of options to meet all the customer’s requirements. • Automatic set-up. • High level of flexibility • High level of repeatability and precision of the unbalance measuring • Diagnostic and preventive maintenance program • Quick changeover • High level of reliability • User friendly • Rotor diameter: : 30-80 mm (1,18-3,15 in) • Stack lamination height: : 30-100 mm (1,18-3,94 in) • Max production rate: : 360 pcs./hour • Controlled by: : Industrial PC • Measuring precision: : 0.1 gmm/kg max (0,04 oz.in/lb) • Balancing method: : Radial drilling • Power supply: : 380-480 V three-phase 50/60 Hz • Machine dimensions (LxWxH): : 2800 x 3600 x 2400 mm (110,24 x 141,73 x 94,49 in) • Options • Reject conveyor • Industrial Vacuum cleaner for drilling chips • SPC/SW • Printer • Teleservice • Device for quick changeover
