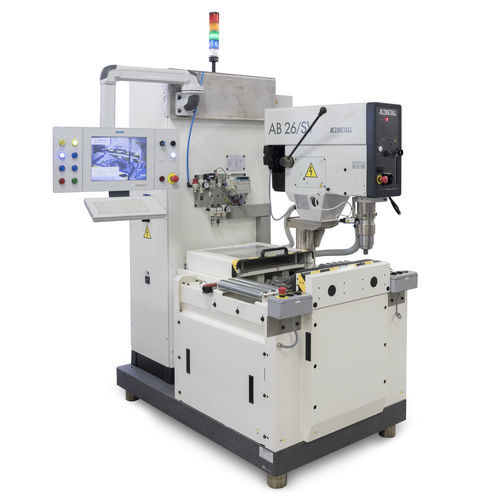

Semi-automatic balancing machine BVK3-40-DU

verticalstaticmanual

• Vertical manual balancing machine capable of balancing on one plane(static), all the disc shape parts. • It is composed of a measuring unit, a vertical drilling. • Parts manipulation performed by the operator. • The unbalance is manually corrected by embedded axial drilling unit (maximum drill bit diameter 20mm). • Compact machine • High level of flexibility • High measuring repeatability • High balancing precision • Quick changeover • User friendly • Max rotor external diameter: : 430 mm (16.93 in) • Max rotor internal diameter: : 260 mm (10.24 in) • Max rotor height: : 40 mm (1.57 in) • Max rotor weight: : 50 kg (110.23 lb) • Cycle time: : < 60 s • Balancing method: : Axial drilling • Balancing speed: : 500-700 rpm • Controlled by: : Industrial PC • Power: : 6 kVA • Power supply: : 400-480V+PE three-phase 50/60 Hz • Machine weight: : 2000 kg (4409.24 lb) • Machine dimensions (LxWxH) : 1150x1700x2120 mm • (45.28×66.93×83.46 in) Options • Operating unit (drilling) • Tele-service • Industrial vacuum cleaner • SPC / SW • Master rotor
