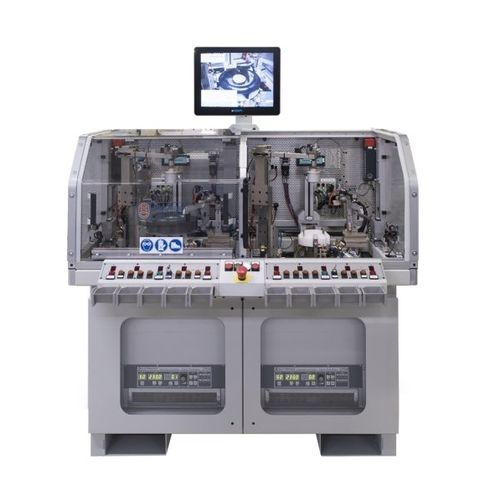

Horizontal balancing machine BTK1V-2S

dynamicfor blowersfor fans

• Dynamic balancing machine with one or two working stations, for all type of assembled AC motors with a fan. • Suitable for the balancing and the functional testing of assembled axial or tangential blowers with AC motor and brushless motor. • As an option, it is possible to carry out the electric test of the motors.The entire balancing and testign cycle is menu driven for easy operation. • The basic machine is equipped to balance assembled AC motor and fan (without electronic control on board), but it is predisposed to accept all the necessary device to balance assembled motor with electronic control on board or brushless motor. • Compact machine • Very easy to use • High level of repeatability • High balancing precision • No skilled operator needed • User friendly • Max fan diameter: : 350 mm (13.78 in) • Measure rpm: : Programmable • Unbalance Measuring time: : 4s (when the rotating part has reached a stable rpm) • Controlled by : Industrial PC • Balancing method : Material addition • Power supply: : 230V 50/60Hz • Machine Weight : 800 kg (1763.7 lb) • Air supply: : 6 bar • Machine dimensions (LxWxH) : 1300x1335x1694 mm (51.18×52.56×66.69 in) Options • SPC Software • Label printer • Electric test • Barcode & data matrx management • Tele-service
