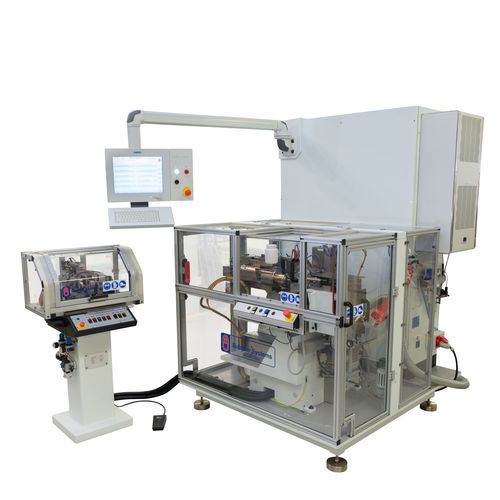

Semi-automatic balancing machine DMK4-R

horizontaldynamicfor automotive applications

• Semi-automatic balancing machine, specifically developed for balancing rotors for asynchronous motors, brushless motors and similar rotating parts, in a completely automatic way on two planes (dynamic). • The unbalance is corrected by removing material as an outcome of radial drilling or axial milling. • Operator interface by industrial PC. • High level of flexibility and quick changeover. • Automatic set-up. • High level of flexibility • High level of repeatability and precision of the unbalance measuring • Diagnostic and preventive maintenance program • Quick changeover • High level of reliability • User friendly • Rotor diameter: : 20-80 mm (0,79-3,15 in) • Stack lamination height: : 20-80 mm (0,79-3,15 in) • Max production rate: : 140-180 pcs./hour • Controlled by: : Industrial PC • Measuring precision: : 0.1 gmm/kg max (0,04 oz.in/lb) • Balancing method: : Radial drilling or axial milling • Power supply: : 380-480 V three-phase 50/60 Hz • Machine dimensions (LxWxH): : 1500 x 1700 x 2200 mm (59,06 x 66,93 x 86,61 in) Options • Re-checking unit • Industrial Vacuum cleaner for drilling chips • SPC/SW and printer • Printer • Teleservice • Marking device
