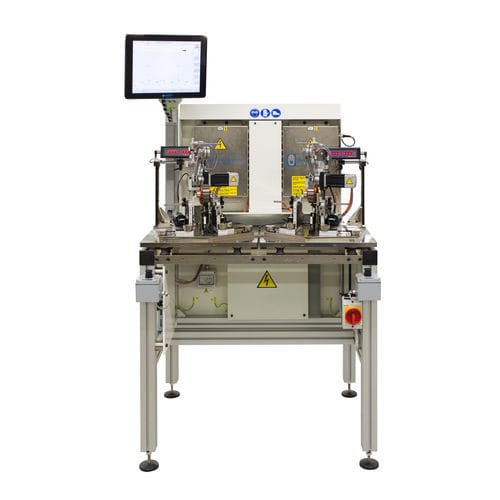

Manual balancing machine MK3-2S

horizontaldynamicflywheel

• Double station manual balancing machine able to measure the unbalance of rotors on two planes (dynamic) or on one plane (static). • The correction of the unbalance is carried out manually by adding material (ea. Epoxy resin). The main application is in the automotive field. • Operator interface by industrial PC. • High level of flexibility and quick changeover. • Compact machine • High level of flexibility • High measuring precision • High balancing precision • Quick changeover • User friendly • Part diameter: : 15-90 mm (0,59-3,54 in) • Measuring time: : 6 s • Controlled by: : Industrial PC • Drive systems: : Tangential or loop belt • Measuring accuracy: : 0.1 gmm/kg max (0,04 oz.in/lb) • Power supply: : 110-230 V 50/60 Hz • Machine dimensions (LxWxH): : 960 x 860 x 1950 mm (37,80 x 33,86 x 76,77 inch) • Machine weight: : 300 kg (661,39 lb) Options • Printer • Teleservice • Digital display
