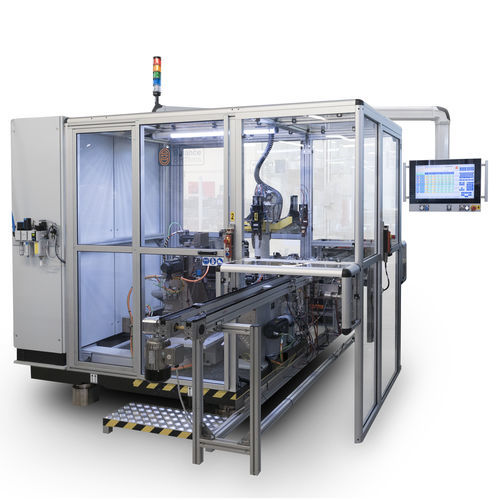

Automatic balancing machine BMK6

horizontaldynamicfor automotive applications

• Fully automatic dynamic balancing machine for high volume production. • Specifically developed for balancing armatures for electric motors. • The main application are in the field of electrical motors for household appliances, power tools and the automotive industry. • It is composed of: a measuring unit, a milling unit for left and right planes and an audit unit. Parts manipulation by four arms rotary cam index. • It can be inserted in any type of lines (pallet, step, by loop, etc.). • Operator interface by industrial PC. • High level of flexibility and quick changeover. • Full range of options to meet all the customer’s requirements. • Automatic set-up • Short cycle time • High level of flexibility • High level of repeatability and precision of the unbalance measuring • Diagnostic and preventive maintenance program • Quick changeover • High level of reliability • User friendly • Max armatures weight: : 3 kg (6,61 lb) • Armatures diameter: : 15-80 mm (0,59-3,15 in) • Stack lamination height: : 10-100 mm (0,39-3,94 in) • Unbalance measuring time: : 9 s • Controlled by: : Industrial PC • Measuring accuracy: : 0.1 gmm/kg max (0,04 oz.in/lb) • Balancing method: : Polar or vectorial milling in depth and length • Power supply: : 110-240 V 50/60 Hz • Machine dimensions (LxWxH): : 2000 x 2700 x 2200 mm (78,74 x 106,30 x 86,61 in) Options • Reject conveyor • Industrial Vacuum cleaner for removing milling chips • SPC/SW and printer • Teleservice • Device for balancing skewed slots armatures ( -16°/+16°) • Device for quick changeover • Device for measuring shaft run out
