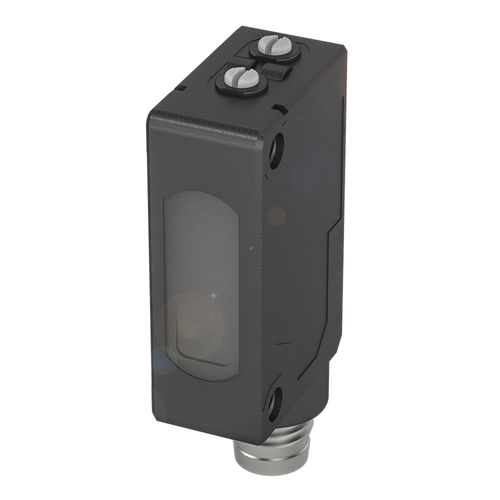

Diffuse photoelectric sensor BOS01JKrectangularlasercompact
Add to favorites
Compare this product
Characteristics
- Sensing mode
- diffuse
- Housing
- rectangular
- Type of beam
- laser
- Other characteristics
- compact
- Maximum range
Max.: 300 mm
(11.8 in)Min.: 20 mm
(0.8 in)
Description
Series
5K
Dimension
10.8 x 43.5 x 19.5 mm
Interface
PNP normally open/normally closed (NO/NC)
Principle of operation
Photoelectric sensor
Principle of optical operation
Diffuse sensor, triangulation
Special optical feature
Background suppression
Beam characteristic
Focus, typical at 260 mm
Light type
Laser red light
Light spot size
0.2 x 0.3 mm at focal point
Connection
Connector, M8x1-Male, 4-pin
Housing material
PC
PBT
Material sensing surface
PMMA
Operating voltage Ub
10...30 VDC
Approval/Conformity
cULus
CE
WEEE
UKCA
