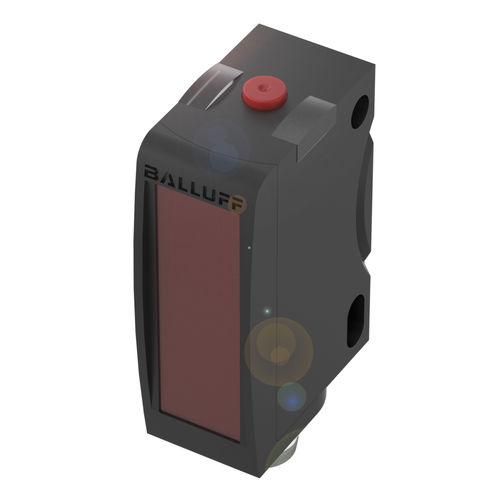

Through-beam sensor photoelectric sensor BOD001L

rectangularLEDanalog

Special characteristics Washdown Series 6K Dimension 12 x 41.5 x 21.6 mm Interface Analog, voltage 1…10 V linear rising/falling PNP NO/NC Principle of operation Photoelectric distance sensor Principle of optical operation Triangulation Beam characteristic Divergent Light type LED, red light Light spot size Ø 5 mm at 50 mm Accuracy ±0.5 % FS Repeat accuracy 0.5 %FS Resolution ≤ 120 µm Connection Connector, M8x1-Male, 4-pin Housing material ABS Operating voltage Ub 13...30 VDC Approval/Conformity CE cULus Ecolab WEEE
