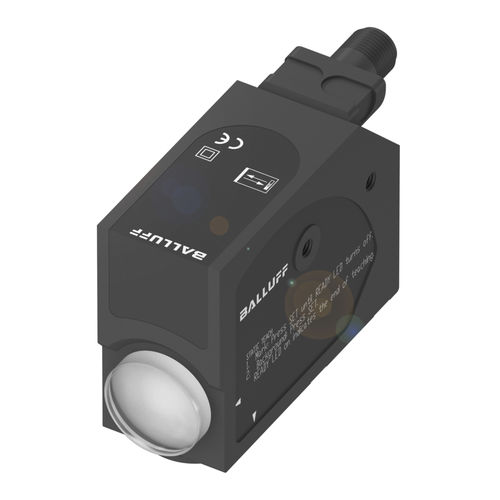

Diffuse contrast sensor BKT0001rectangularblue lightanalog
Add to favorites
Compare this product
Characteristics
- Sensing mode
- diffuse
- Housing
- rectangular
- Type of beam
- blue light
- Other characteristics
- analog
- Maximum range
Max.: 12 mm
(0.5 in)Min.: 6 mm
(0.2 in)
Description
Series
67M
Dimension
32 x 64 x 82 mm
Interface
PNP/NPN NO/NC Analog, voltage 1…5.5 V
Input function
Time function on/off
Principle of operation
Contrast sensor
Principle of optical operation
Diffuse sensor, focused
Beam characteristic
Focused
Light type
blue light/green light/red light
Light spot size
1.5 x 5 mm at 9 mm
Connection
Connector, M12x1-Male
Housing material
Aluminium, Die casting, Painted
Material sensing surface
PMMA
Operating voltage Ub
10...30 VDC
Approval/Conformity
CE
cULus
WEEE
