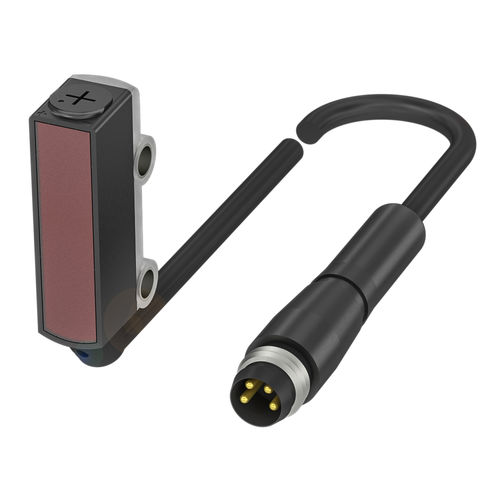

Diffuse photoelectric sensor BOS0234

rectangularLEDcompact

Series R020K Dimension 7.7 x 32.5 x 13.5 mm Interface PNP normally open (NO) Principle of operation Photoelectric sensor Principle of optical operation Diffuse sensor, triangulation Special optical feature Background suppression Beam characteristic Focus, typical at 15 mm Light type LED, red light Light spot size Ø 4.4 mm at 80 mm Connection Cable with connector, M8x1-Male, 4-pin, 0.20 m, PVC Housing material ABS Material sensing surface PMMA Operating voltage Ub 10...30 VDC Approval/Conformity CE cULus WEEE
