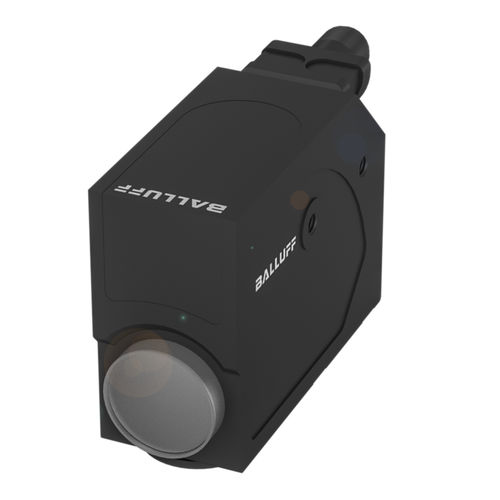

Diffuse contrast sensor BKT0005

rectangularblue light

Series 67M Dimension 32 x 64 x 82 mm Interface PNP/NPN normally open/normally closed (NO/NC) Input function Same function as SET button Principle of operation Contrast sensor Principle of optical operation Diffuse sensor, focused Beam characteristic Focused Light type blue light/green light/red light Light spot size 1.5 x 5 mm at 9 mm Connection Connector, M12x1-Male Housing material Aluminium, Die casting, Painted Material sensing surface Glass Operating voltage Ub 10...30 VDC Approval/Conformity CE cULus WEEE
