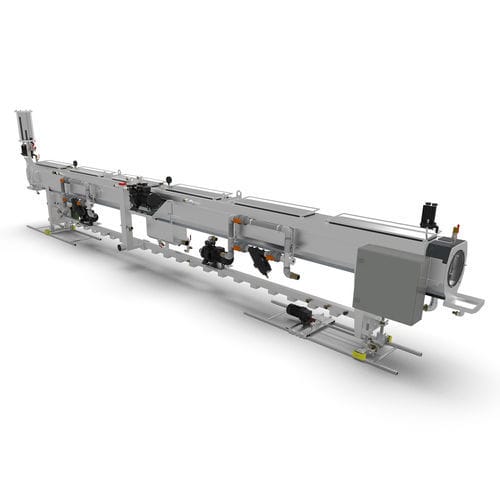

Process flow cell vacStream

Overview
vacStream vacuum tanks are engineered for PO and PVC pipe extrusion across a wide range of diameters and production requirements. The product family is modular and configurable for single- or multi-chamber operation, fast dimension change (FDC) and twin-strand extrusion. Designed for process stability, energy efficiency and easy integration into extrusion lines.

Your Advantages

• Complete stainless-steel construction options
• Flow‑optimized, corrosion‑resistant piping
• Adjustable in height, lateral and longitudinal positions
• Cold-water temperature control
• Energy savings via optimally sized pumps
• Application‑specific tank customization
• Patented pipe support for FDC versions
• Frequency-controllable vacuum pumps (optional)

Our Offer

• Vacuum tanks for pipe diameters up to 63 mm
• Vacuum tanks for pipe diameters up to 630 mm
• Vacuum tanks for pipe diameters from 800 mm and above
• Large-diameter extrusion capability: currently up to 1,600 mm (PVC) and 2,600 mm (HDPE)

Pipe diameter up to 63 mm

• Special versions for precise vacuum and water quantity control
• Optional fine vacuum control
• Dual or multiple chamber configurations
• Switchable between full bath and spray bath
• Integrated blow‑off and drying units
• Dry‑running protection for vacuum and water pumps

Pipe diameters up to 630 mm

• Tanks available in 6 m (single chamber) and 9 m (dual chamber) using 1.5 m modular segments
• Flexible configuration and extended cooling length via barrier-free tank connections
• Extremely stable vacuum through optimized process control
• Advanced rail system for component placement under or beside the tank
• All FDC components retrofit-capable on single-chamber tanks
• Quick, durable sealing with new lid concept
• Symmetrical tank design allows operator-side change without structural alterations

Large diameter pipes from 800 mm and above

• Redundant water and vacuum pumps for secure operation and easier start-up
• Spray nozzle rods adjustable individually from outside
• Double filter unit with automatic backwashing
• Changeover aids inside the tank (pulley, platforms)
• Top access via operator safety platform

Technical specifications

• Product: Vacuum tanks for PO and PVC pipe extrusion (brand: vacStream)
• FDC (fast dimension change) system for automatic dimension change
• Twin‑strand extrusion capable
• Modular tank segments (1.5 m) — typical lengths: 6 m single chamber, 9 m dual chamber
• Patented pipe support system for FDC versions
• Optional fine vacuum and water quantity control
• Dual / multiple chamber configurations
• Switchable full bath / spray bath operation
• Integrated blow‑off and drying units
• Integrated dry‑running protection for vacuum and water pumps
• Frequency-controllable vacuum pumps (optional) for energy savings
• Flow‑optimized, corrosion‑resistant piping; stainless‑steel construction options
• Redundant pumps for large-diameter tanks
• External adjustability for spray nozzle rods
• Double filter with automatic backwashing
• Operator safety platform for top access
• Symmetrical design allowing operator-side change without structural modification
• Large-diameter extrusion capability: up to 1,600 mm (PVC) and 2,600 mm (HDPE)
