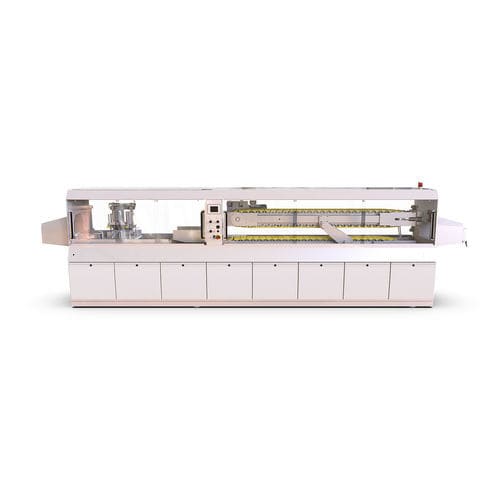

Profile extrusion line haul-off

for extrusion lines

Short description
The optimal interaction of all components in profile extrusion is the basis for consistent product quality. We supply standardized complete systems as well as freely configurable units for the extrusion of technical profiles and window profiles. Our solutions combine in-house products with components from long-term partners to deliver turnkey lines.

Worldwide successful profile-line concept
Modular platform suitable for a wide range of profile extrusion systems.

Your benefits

• Decades of experience in single- and twin-line profile extrusion
• Proven global profile-line concept
• Extensive know-how in extruding all common thermoplastics
• Maximum line performance through haul-off units optimized to the extruder-tool combination
• Energy savings with the greenVAC concept

Our offer

• Comprehensive expertise in machine and process engineering
• All components from a single source
• Optimally matched complete lines
• Production-secure machinery
• Complete modular range of calibration tables, belt and caterpillar haul-offs, and separation units (cutting, non-cutting) in various sizes

greenVAC "Energy-saving system"
The largest energy consumers in PVC extrusion are the extruder drive and the vacuum pumps of the calibration table. The greenVAC system can reduce energy consumption by up to 80% depending on the profile type. greenVAC is applied at the calibration table: each vacuum zone consists of a water/air separation tank with frequency-controlled vacuum and water pumps. Required vacuum values are set via a simple touch control panel. For water calibration tanks, a side-channel blower is used instead of a vacuum pump to extract a significantly higher volume.

greenVAC - Your benefits

• Up to 80% energy savings
• Significantly reduced noise level by eliminating noisy air leaks and by demand-driven motor speed control of the frequency-controlled vacuum pumps

greenVAC - Our offer

• Faster, cost-optimized start-up through frequency-controlled vacuum pumps, a side-channel blower and automatic vacuum control
• Simple and cost-effective spare part sourcing using proven standard components

Characteristics / Technical specifications

• Product name / Type: Haul-off unit for profiles
• Application: Extrusion of technical profiles and window profiles
• System configuration: Modular platform, standardized complete systems or freely configurable units
• Line types: Single-line and twin-line profile extrusion
• Materials: Extrusion of all commonly used thermoplastics
• Components: Calibration tables, belt haul-offs, caterpillar haul-offs, separation units (cutting, non-cutting)
• greenVAC properties: Energy savings up to 80% (depending on profile type)
• Vacuum zones: Water/air separation tank with frequency-controlled vacuum and water pumps
• Water calibration tank: Side-channel blower instead of vacuum pump for higher extracted volumes
• Operation: Touch control panel for setting required vacuum values
• Performance feature: Optimized to extruder-tool combination for maximum line performance
• Manufacturer: battenfeld-cincinnati
