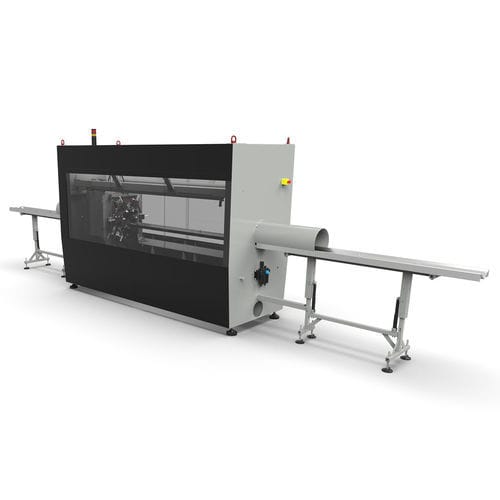

High-speed pipe cutting and beveling machine cutStream

stationarymotorized

Short description
cutStream pipe cutting units for PO (polyolefin) and PVC extrusion. High-precision cutting solutions for a wide range of diameters and wall thicknesses.

Overview
The cutStream family includes pipe cutting saws (RTA), the newly developed direct cutting unit (DTA) and the proven planetary cutting unit (PTA). All units are controlled via an integrated touch screen and are designed for synchronization with extrusion and haul-off speeds.

Your Advantages

• Consistent cut quality and optimized cut surface across diverse pipe materials
• Swarfless cutting available for many material types
• Synchronized operation with the extrusion line and haul-off speed
• Central clamping system adapts to a wide range of wall thicknesses
• Capable of sawing and chamfering PVC and other special applications

Our Offer

• Pipe cutting units type RTA 63 for diameters from 10 to 63 mm
• Pipe cutting units type DTA for diameters from 16 to 800 mm
• Pipe cutting units type PTA for diameters from 1000 to 2600 mm

Product types — details
Pipe cutting units type RTA 63

• Swarfless cutting of PO pipes, suitable for high extrusion speeds (> 60 m/min)
• Cutting saw embedded in linear guides
• Electrically driven saw carriage with speed synchronized to the haul-off via pilot frequency
• Near‑silent cutting of PO materials
• Accurate pipe clamping with half‑shell design

Pipe cutting units type DTA

• Designed for high line speeds and high cutting frequency
• Independent infeed of two or more electromechanically driven cutting tools
• High precision for demanding separation and chamfering quality requirements
• Reduced auxiliary parts and lower weight for improved cutting dynamics
• 100% electric drive for simplified maintenance
• New control system for intuitive operation and reproducible cuts

Pipe cutting units type PTA

• Swarfless cutting, sawing or combined cutting for thick‑walled and thin‑walled pipes
• Single clamping punch for the full diameter range; central clamping optional for thin‑walled pipes
• Electrically adjustable roller guide at inlet; V‑channel or adjustable roller guide at outlet
• Near‑silent swarfless cutting and suitability for PO pipes
• Machine cutting and chamfering of PVC and special applications
• Saw carriage on guide rails, adjustable by electric or pneumatic drive

Characteristics / technical specifications

• Product family / model name: cutStream
• Integrated control: touch screen operation (integrated), intuitive control system (DTA)
• Cutting methods: swarfless cutting, sawing, combined cutting, chamfering
• Drive: electrically driven saw carriages (DTA: 100% electric)
• Clamping: central clamping system; half‑shell clamping design (RTA)
• Diameter ranges: RTA 63 — 10 to 63 mm; DTA — 16 to 800 mm; PTA — 1000 to 2600 mm
• Suitable materials: PO (polyolefin) pipes and PVC (machine cutting and chamfering for PVC)
• Designed for high extrusion line speeds (e.g. RTA: > 60 m/min)
