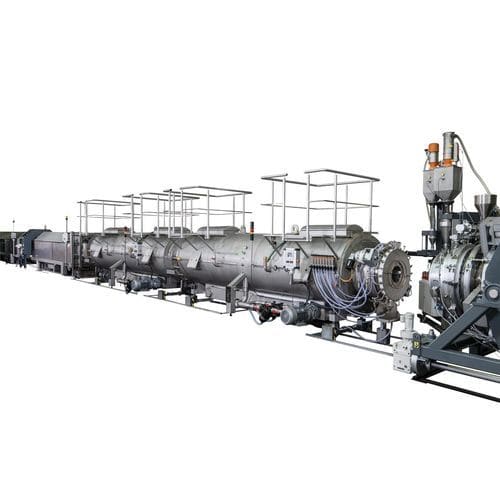

Single layer extrusion line FDC

multilayerhigh-throughputfor pipes

Overview
Powerful and flexible operation
Complete lines for quick, in-line dimension change from a single source
Pipe manufacturers aiming to be competitive in production these days need extrusion lines which are powerful, flexible and quickly adjustable, as well as cost-efficient in operation. To meet these requirements, the system is developed for automatic pipe dimension change during production. The system can be delivered as a complete solution, or individual components can be chosen to retrofit an existing line.

Your Advantages

• Efficient extrusion line with high throughput
• Material savings thanks to reduced change-over times
• High flexibility as to pipe geometry and production planning

Our Offer

• High-performance extruders along with an inner pipe cooling system ensure highest productivity with low energy consumption
• Adjustable components over a particularly large diameter range
• Modular concept, from changing one adjustable component to a complete, automatically adjustable extrusion line, e.g. diameters 200 - 630 mm, comparable to standard extrusion lines
• Simple handling thanks to an extended control concept for automatic dimension change
• Excellent pipe quality with homogeneous pipe surface and even wall thickness distribution
• The FDC system is suited for the production of PE-HD single layer, as well as co-extruded multi-layer pipes

FDC line components

• 1: Extruder
• 2: Pipe head with adjustable melt gap (helix II pipe head with adjustable melt gap)
• 3: FDC adjustable calibration sleeve
• 4: Vacuum tank vacStream with adjustable pipe support
• 5: FDC adjustable vacuum sealing
• 6a: coolStream cooling tank
• 6b: pullStream haul-off
• 6c: cutStream cutting unit
• 6d: Tilting table

Characteristics / Specifications techniques

• Model / Series: FDC
• Diameter range (example): 200 - 630 mm (modular concept allows particularly large diameter range)
• Suitable for: PE-HD single layer and co-extruded multi-layer pipes
• Main features: automatic in-line dimension change, adjustable melt gap (helix II pipe head), adjustable calibration sleeve, adjustable vacuum sealing
• Modularity: configurable from single adjustable component to a fully automatic adjustable extrusion line
• Performance: designed for high throughput with energy-efficient operation
• Downstream components: integrated inner pipe cooling, vacuum tank with adjustable support, haul-off, cutting unit, tilting table
