Liquid cooling system

for the plastics industryfor extrusion linescustom-made

Product type

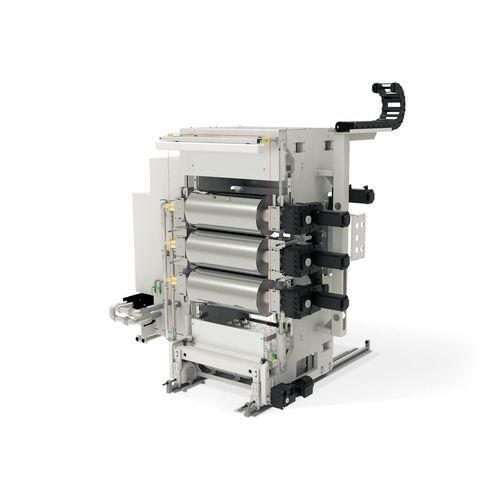

Inline roll stack — roll stack for mono- and multi-layer sheet extrusion with inline feeding to thermoformers. battenfeld-cincinnati developed high-performance roll stack technologies to save energy and material and to complement proven extruder series. Inline roll stacks are customized for common European and American thermoforming systems.

Your Advantages

• Energy savings through reduced sheet cooling
• No edge trim required
• Optional adjustable post-cooling rolls for setting sheet temperature
• Short-distance sheet guiding and integrated haul-off maintain required high sheet core temperature

Our Offer

• Innovative loop control, inline control system and other exclusive features available
• Highly precise, digitally controlled drives
• Electro-motoric roll gap adjustment for improved production reliability

Technical characteristics

• Type: Inline roll stack designed for mono- and multi-layer sheet production
• Process: Inline processing — sheet extruded to the exact infeed width and fed directly to the thermoformer
• Customization: Adaptable to common European and American thermoforming systems
• Energy & material savings: Reduced sheet cooling; no edge trim required
• Temperature management: Optional adjustable post-cooling rolls; short-distance guiding and integrated haul-off to maintain core sheet temperature
• Controls & drives: Innovative loop control and inline control system; highly precise, digitally controlled drives
• Adjustment: Electro-motoric roll gap adjustment for enhanced production reliability
