Pipe extrusion line

for PVC pipesfor POfor PVC

Overview
Roller beds (rollStream) and tilt/tip tables (tiltStream) designed for PO and PVC pipe extrusion lines, ensuring coordinated line components from a single supplier for consistent production performance.

Summary
rollStream and tiltStream provide reliable pipe guidance, diameter adaptation and automatic handling to maintain constant output across a wide range of pipe diameters.

Your Advantages

• Single-source coordination of line components
• Optimized line performance through matched components
• High production and process reliability
• Extensive machine and process engineering expertise

Our Offer

• rollStream for pipe diameters 160–2,000 mm
• rollStream variants for pipe diameters 1,000–2,500 mm (and options covering up to 3,000 mm)
• tiltStream for pipe diameters 10–630 mm

Roller bed rollStream RG 800 to 2000

• Pipe diameter: 160–2,000 mm
• Designed for guiding and supporting pipes in extrusion lines
• Manual diameter adjustment
• Base frame: welded steel bars

Roller bed rollStream RG 2500

• Pipe diameter: 1,000–2,500 mm
• Electromotive diameter adjustment
• Discrete Euromap 29 interface (option)

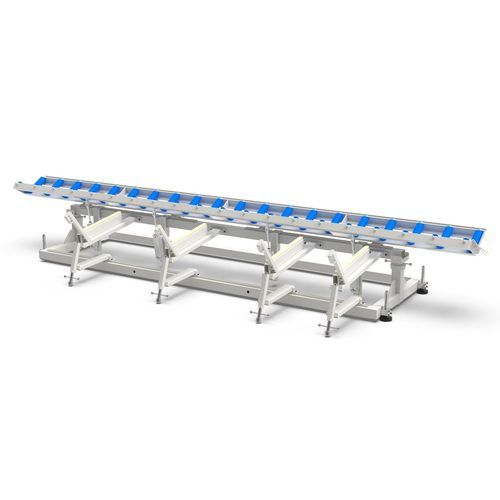

Tilt/tip table tiltStream KR 100 to KR 630

• Pipe diameter: 10–630 mm
• Designed for automatic ejection of pipes after the cutting process
• Roller conveyor for gentle handling
• Tipping actuation by pneumatic cylinder
• Base frame: welded steel bars
• Discrete Euromap 29 interface (option)
• FDC execution (option)

Technical specifications

• Product families: rollStream (roller beds) and tiltStream (tilt/tip tables)
• Suitable application: PO and PVC pipe extrusion
• Pipe diameter ranges by model: 10–630 mm (tiltStream KR), 160–2,000 mm (rollStream RG 800–2000), 1,000–2,500 mm (rollStream RG 2500); other offerings noted up to 3,000 mm
• Diameter adjustment: manual (RG 800–2000) or electromotive (RG 2500)
• Functions: pipe guiding, automatic ejection after cutting (tiltStream)
• Tipping actuation: pneumatic cylinder (tiltStream)
• Interfaces/options: Discrete Euromap 29 (option), FDC execution (option)
• Mechanical construction: base frame made from welded steel bars
