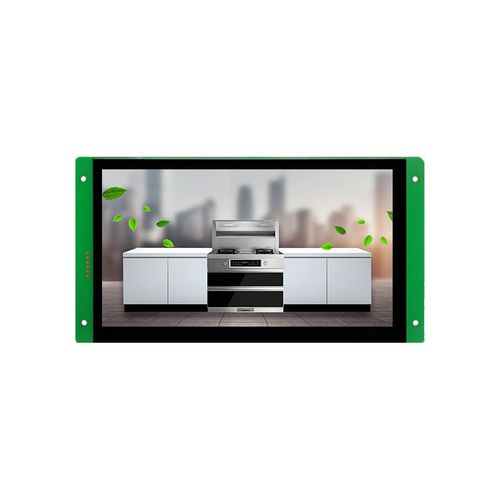

TFT LCD display module DMG10600C070_03WTC
IPScapacitive touch screenresistive touch screen

TFT LCD display module - DMG10600C070_03WTC - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / resistive touch screen
TFT LCD display module - DMG10600C070_03WTC - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / resistive touch screen
TFT LCD display module - DMG10600C070_03WTC - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / resistive touch screen - image - 2
TFT LCD display module - DMG10600C070_03WTC - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / resistive touch screen - image - 3
TFT LCD display module - DMG10600C070_03WTC - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / resistive touch screen - image - 4
TFT LCD display module - DMG10600C070_03WTC - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / resistive touch screen - image - 5
TFT LCD display module - DMG10600C070_03WTC - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / resistive touch screen - image - 6
Add to favorites
Compare this product

Characteristics

Screen type
TFT LCD, IPS, capacitive touch screen, resistive touch screen
Type
color
Format
1024 x 600
Screen size
7"
Applications
industrial
Other characteristics
with built-in electronics, wide-viewing angle, LED-backlit
Width

154.2 mm
(6.0709 in)

Height

85.9 mm
(3.3819 in)

Operating temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

● Based on T5L ASIC 7.0 Inches, 1024xRGBx600, 16.7M Colors, IPS screen; ● None/Resistive /Capacitive touch panel; ● UART2: ON=TTL/CMOS; OFF=RS232;UART4: ON=TTL/CMOS; OFF=RS232; 10Pin_1.0mm FCC Socket; ● Download methods:via SD card or on-line serial port; ● Easy-to-use DWIN DGUS V7.6 GUIs Development.no coding skills required; ● Dual Development System:DGUS Ⅱ/TA(Instruction set); ● LCD:IPS View Angle:85/85/85/85(L/R/U/D); ● With GUI & OS dual-core, GUI with rich controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51.
