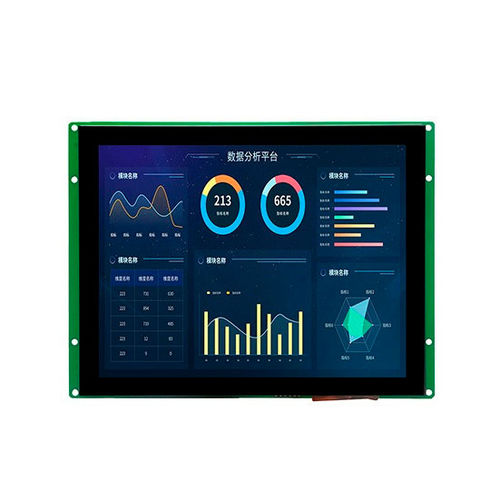

Instrumentation display module DMG80600C080_03W

TFT LCDTNcapacitive touch screen

DMG80600C080_03WT Main Features *HMI intelligent display for commercial grade application. *8 inch, 800*600 TFF, 75/75/75/75 viewing angle. *G+G capacitive touch panel Support adjustment of capacitive touch panel responsiveness, which make the thickness of front toughened glass is up to 6 mm * Industrial grade 4 wire resistive touch panel option. *Standard instruction set (TA) / DGUSⅡ system *TTL/232 communication socket. * PCB with three proofing treatment. *TFT LCD ageing test before it leaves the factory. Specification- Brand Name: DWIN Origin: CN(Origin) Model Number: DMG80600C080_03WT is_customized: Yes Place of Origin: Hunan, China Color: 65K color Driver IC: DWIN T5L Touch screen type: Resistive Touch/Capacitive Touch Resolution(H*V): 800*600 Grade: Commercial Panel Type: TN Serial Port: TTL/232 Interface Type: HMI Supply Ability: 500 Piece/Pieces per Week Aspect ratio: 4:3 Brightness (nit): 250 Power supply voltage (V): 4.5-5.5 Power supply current (mA): 600mA@12V Operating tempreature (℃): -20/+70 Communication: TTL/232 Connector socket: 10Pin_1.0mm Active area(mm): 162*121.5
