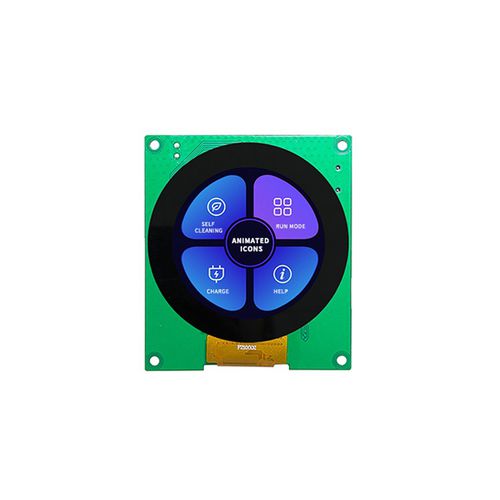

TFT LCD display panel DMG48480C021_03W
IPScapacitive touch screen480 x 480

TFT LCD display panel - DMG48480C021_03W - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / 480 x 480
TFT LCD display panel - DMG48480C021_03W - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / 480 x 480
TFT LCD display panel - DMG48480C021_03W - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / 480 x 480 - image - 2
Add to favorites
Compare this product

Characteristics

Screen type
TFT LCD, IPS, capacitive touch screen
Format
480 x 480
Screen size
2.1"
Applications
for control panels
Interface
RS-232, UART
Other characteristics
cost-effective, with built-in electronics, LED-backlit, wide-viewing angle
Length

75 mm
(2.953 in)

Width

85 mm
(3.3465 in)

Height

12.3 mm
(0.4843 in)

Operating temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

●Based on T5L1, running DGUS II system, commercial grade; ● 2.1-inch circular LCD, 480*480 pixels resolution; ● 16.7M colors, IPS-TFT-LCD, wide viewing angle; ● 10Pin_1.0mm socket for power supply and serial communication; ● Backlight Service Life: >20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness) ● Use DWIN DGUS II V7.6GUIs software development
