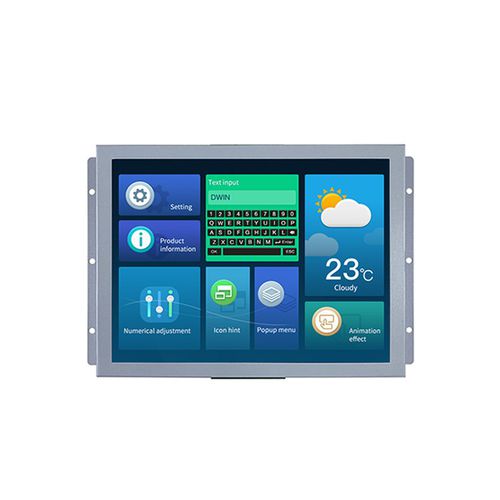

Color display module DMG80600L080_01WTRTFT LCDTNresistive touch screen
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, TN, resistive touch screen
- Type
- color
- Format
- 800 x 600
- Screen size
- 8"
- Applications
- industrial, control, for medical equipment, for control panels, for remote control, safety, digital signage, remote
- Interface
- RS-232, Modbus, UART
- Configuration/mounting
- indoor, integrated
- Other characteristics
- cost-effective, electronic, LED-backlit, with buzzer, smart
- Width
162 mm
(6.378 in)- Height
121.5 mm
(4.7835 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
● Based on self-designed T5L ASIC, 8.0 Inch, 16.7M Colors, 800*600 Pixel TFT LCD;
● Net Weight:383g;
● Resistive touch screen;
● 8Pin_2.0mm connection wire;
● Download via SD card or on-line serial port;
● Dual Development System: DGUS II/ TA(Instruction set);
● Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required;
● With GUI & OS dual-core, GUI with rich controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51.
