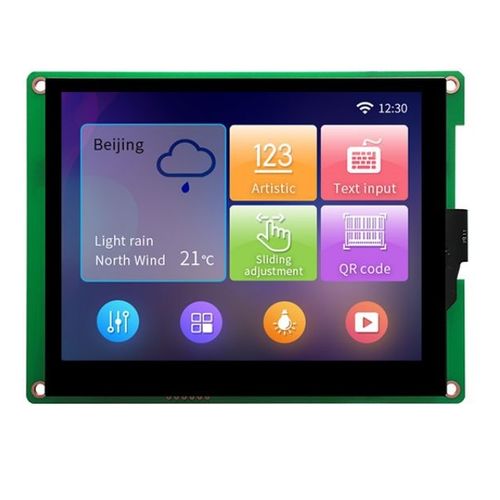

Smart display module DMG64480C056_03W
TFT LCDTNcapacitive touch screen

Smart display module - DMG64480C056_03W - Beijing DWIN Technology Co., Ltd. - TFT LCD / TN / capacitive touch screen
Smart display module - DMG64480C056_03W - Beijing DWIN Technology Co., Ltd. - TFT LCD / TN / capacitive touch screen
Smart display module - DMG64480C056_03W - Beijing DWIN Technology Co., Ltd. - TFT LCD / TN / capacitive touch screen - image - 2
Smart display module - DMG64480C056_03W - Beijing DWIN Technology Co., Ltd. - TFT LCD / TN / capacitive touch screen - image - 3
Smart display module - DMG64480C056_03W - Beijing DWIN Technology Co., Ltd. - TFT LCD / TN / capacitive touch screen - image - 4
Smart display module - DMG64480C056_03W - Beijing DWIN Technology Co., Ltd. - TFT LCD / TN / capacitive touch screen - image - 5
Add to favorites
Compare this product

Characteristics

Screen type
TFT LCD, TN, capacitive touch screen, resistive touch screen
Type
color
Format
640 x 480
Screen size
5.6"
Applications
control, instrumentation, for control panels, information
Interface
RS-232, UART
Configuration/mounting
indoor, portable
Other characteristics
cost-effective, with built-in electronics, LED-backlit, with buzzer, smart
Width

112.9 mm
(4.4449 in)

Height

84.7 mm
(3.3346 in)

Operating temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

● Based on self-designed T5L1 ASIC, 16.7M Color, 24bit, 640*480 Pixel TFT LCD; ● No touch screen/Resistive touch screen/Capacitive touch screen Optional; ● TTL/RS232 Interface,10Pin1.0mm FCC connection wire; ● Download via SD card or on-line serial port; ● Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required; ● Dual Development System: DGUS II/ TA(Instruction set); ● TN View Angle: 70/70/50/70 (L/R/U/D) ;
