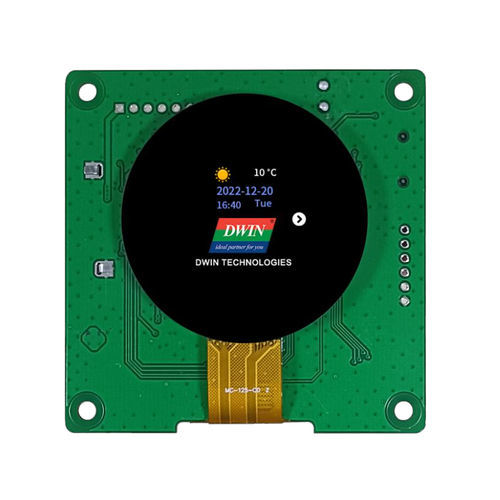

Round display module DMG24240C013_03W
TFT LCDIPScapacitive touch screen

Round display module - DMG24240C013_03W - Beijing DWIN Technology Co., Ltd. - TFT LCD / IPS / capacitive touch screen
Round display module - DMG24240C013_03W - Beijing DWIN Technology Co., Ltd. - TFT LCD / IPS / capacitive touch screen
Round display module - DMG24240C013_03W - Beijing DWIN Technology Co., Ltd. - TFT LCD / IPS / capacitive touch screen - image - 2
Add to favorites
Compare this product

Characteristics

Screen type
TFT LCD, IPS, capacitive touch screen
Type
color
Format
240 x 240
Screen size
1.3"
Applications
HMI
Interface
UART
Structure
round
Configuration/mounting
integrated
Other characteristics
wide-viewing angle, with built-in electronics, LED-backlit
Length

65 mm
(2.559 in)

Width

65 mm
(2.5591 in)

Height

11.3 mm
(0.4449 in)

Operating temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Description

● Based on T5L0, running DGUS II system, commercial grade. ● 1.3-inch, 240*240 pixels resolution, 262K colors, IPS-TFT-LCD, wide viewing angle. ● Circular LCD screen ● 10Pin_1.0mm socket for power supply and serial communication ● Backlight Service Life: >20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness) ● Use DWIN DGUSII V7.6 GUIs software development
