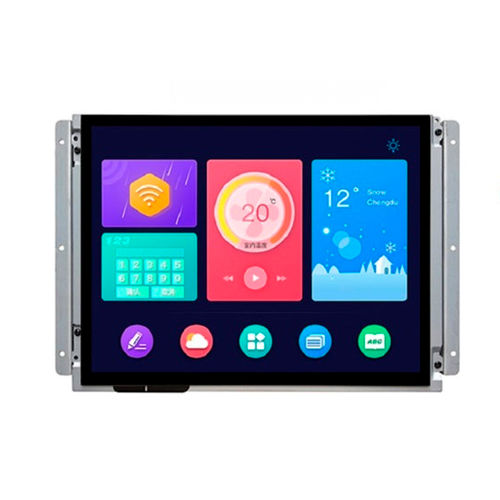

LCD/TFT display module DMG80600C121_03W

capacitive touch screenresistive touch screencustom

Description DMG80600C121_03W is a 12.1Inch HMI Intelligent UART Serial TFT LCD Display Module, with 16.7M Colors, 24Bit,250-300nit, EWTN Panel. Non Touch Panel, Resistive Touch Panel, Capacitive Touch Panel are available. It consists of 16Mb Flash, 128Kb RAM, 320Kb Nor Flash. Flash extending is supported per your requirement. It's under 8051 processor, 250MHz frequency. RS232/TTL is available for the communication. The display is under T5L ASIC, which includes two kernel, namely GUI & OS. GUI is for the UI interface design, support function of Data display/input, Text Display/Input, Real-time Curves, Scrolling, Page sliding, Data Uploading, Graphics etc. OS kernel can be open to the customer for second-development, under KEIL C51 or OS. Specification- Brand Name: DWIN Origin: CN(Origin) Model Number: DMG80600C121-03W is_customized: Yes Type: lcm Resolution: 800*RGB*600 Panel type: EWTN (75/75/75/75) Brightness: 250nit to 300nit Action Area: 246mm(W)*184.6mm(H) Flash memory: 16Mb Interface: TTL/RS232 Color: 16.7M colors, 24bit Voltage: 12V to 36 VWorking Temperature: -20° to 70° Storage Temperature: -30° to 85° Support: Speaker, WiFi Module Touch Panel: Non Touch,Resistive,Capacitive CPU: T5L ASIC RAM: 128Kb Nor Flash: 320Kb
