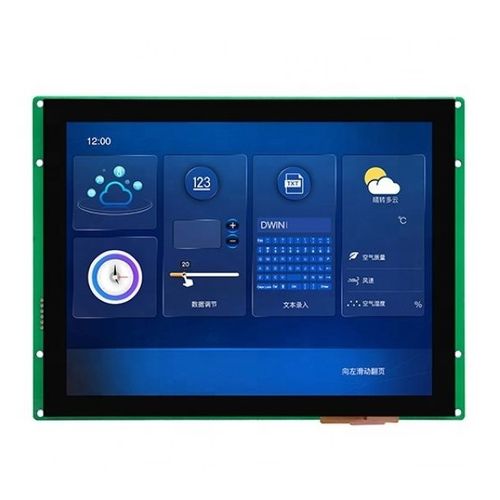

8" display module DMG10768C080_03WTFT LCDIPScapacitive touch screen
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, IPS, capacitive touch screen, resistive touch screen
- Format
- 1024 x 768
- Screen size
- 8"
- Applications
- industrial, HMI
- Interface
- RS-232, Modbus, UART
- Configuration/mounting
- indoor
- Other characteristics
- cost-effective, with built-in electronics, wide-viewing angle, LED-backlit, with buzzer, smart
- Width
162 mm
(6.378 in)- Height
121.5 mm
(4.7835 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
● Based on T5L ASIC 8.0 Inches, 1024xRGBx768, 16.7M Colors, IPS screen, Cost-Effective screen;
● No Touch,Resistive,Capacitive touch panel;
● UART2: TTL/CMOS,UART4: TTL/CMOS; 10Pin_1.0mm FCC Socket;
● Download with SD card or on line serial port;
●Support TTL/CMOS, the max baud rate is 3225600bps;
● DGUSⅡ/TA(Instruction set) development modes;
● With IPS Wide View Angle:85/85/85/85(L/R/U/D);
● With GUI & OS dual-core of 8015 processor , GUI core with rich controls.,the other OS core is open to the user for the second-development, via DWIN OS language or KEIL C51.
