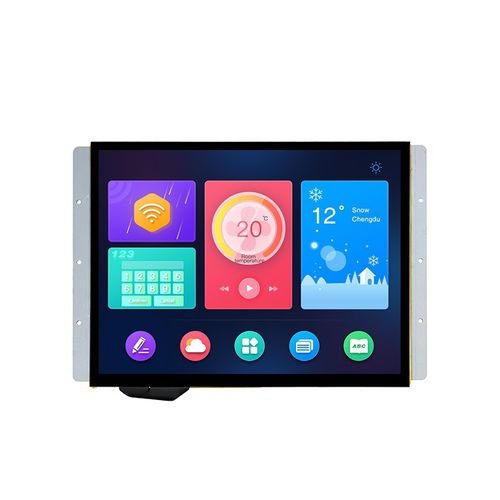

TFT display panel DMG10768T121_01W
IPScapacitive touch screenresistive touch screen

TFT display panel - DMG10768T121_01W - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / resistive touch screen
TFT display panel - DMG10768T121_01W - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / resistive touch screen
TFT display panel - DMG10768T121_01W - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / resistive touch screen - image - 2
Add to favorites
Compare this product

Characteristics

Screen type
TFT, IPS, capacitive touch screen, resistive touch screen
Format
1024 x 768
Screen size
12.1"
Applications
HMI
Other characteristics
with built-in electronics, wide-viewing angle, LED-backlit
Operating temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

Features: ● Based on self-designed T5L2 ASIC, 16.7M Color, 24bit, 1024*768 Pixel; ● No touch screen/Resistive touch screen/Capacitive touch screen; ● TTL / RS232 Interface, 8Pin2.0mm connection wire; ● Download via SD card or on-line serial port; ● Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required; ● Dual Development System: DGUS II/ TA(Instruction set); ● IPS View Angle: 85/85/85/85 (L/R/U/D) ; ● With GUI & OS dual-core, GUI with rich controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or C51.
