Oxygen production plant OXYBERG®

Overview

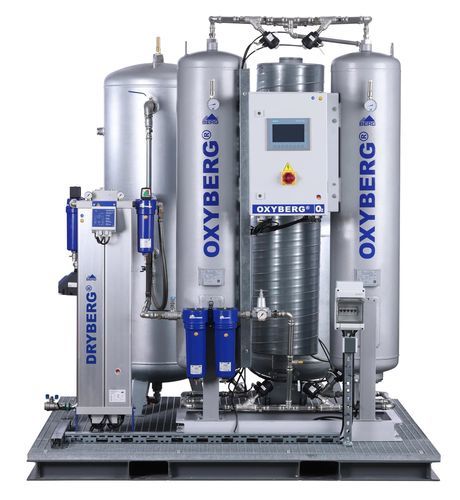

A PSA oxygen plant is a complete on-site oxygen generation system delivered as a pre-assembled, skid-mounted plug-and-play unit. The skid integrates a PSA oxygen generator (OXYBERG®), compressed-air generation and treatment (optionally a KOMPBERG® screw compressor), adsorption dryer (DRYBERG®), multi-stage filtration (PUREBERG®), compressed-air and O₂ buffer vessels, and flow/pressure regulation. Systems are pre-piped, pre-wired and factory-tested to reduce on-site engineering and commissioning effort.

Key product badges and performance

• PED 2014/68/EU · NB 2912 (conformity reference)
• O₂ purity range: 90 % – 95 % (standard industrial PSA range; 93 % option available)
• Delivered as a plug-and-play skid, engineered and manufactured in Germany

What’s inside the oxygen plant: complete system components

• Screw air compressor (optional: KOMPBERG®)
• Water separator with Bekomat
• Compressed air tank (wet)
• Pre-filter (PUREBERG®)
• DRYBERG® adsorption dryer
• Fine filter
• Super fine filter (PUREBERG®, oil-free)
• Activated carbon tower
• Dust filter
• Compressed air tank (dry)
• OXYBERG® PSA oxygen generator (system core)
• Oxygen buffer vessel (O₂)
• Flow / pressure regulator + oxygen filter

Configurations (plug-and-play range)
Six pre-engineered skid configurations cover the standard on-site oxygen range. Each configuration is built around a specific OXYBERG® model and includes matched PUREBERG® filter line, DRYBERG® adsorption dryer and O₂ buffer vessel.

• OXYBERG® 500 — O₂ flow @ 90 %: on request; O₂ vessel: 90 L; Air receiver: 90 L
• OXYBERG® 600 — O₂ flow @ 90 %: on request; O₂ vessel: 90 L; Air receiver: 150 L
• OXYBERG® 700 — O₂ flow @ 90 %: on request; O₂ vessel: 150 L; Air receiver: 150 L
• OXYBERG® 800 — O₂ flow @ 90 %: on request; O₂ vessel: 250 L; Air receiver: 350 L
• OXYBERG® 900 — O₂ flow @ 90 %: on request; O₂ vessel: 350 L; Air receiver: 500 L
• OXYBERG® 1000 — O₂ flow @ 90 %: on request; O₂ vessel: 500 L; Air receiver: 500 L

Compressor options

• Configurations can be supplied with or without an integrated KOMPBERG® screw compressor.
• Typical integrated compressors: OXYBERG® 500–900 with KOMPBERG® BSDK7; OXYBERG® 1000 with KOMPBERG® BSDKF11/13.
• If site compressed-air infrastructure meets requirements (approx. 7 bar, required flow & quality), the plant can be supplied without the compressor and connected to existing supply.

Advantages of a Berg plug-and-play skid

• Fast deployment: skid arrives pre-assembled, pre-wired and factory-tested to reduce on-site work and commissioning time.
• Single skid footprint with defined base frame, aluminium floor plates and integrated forklift slot.
• Single point of contact and one warranty for the entire integrated system.
• Documentation pack delivered with the plant to support installation and operation.

Documentation pack (delivered with each plant)

• Assembly layout drawings and P&ID (R&I) scheme
• Plant description and operation & maintenance manual
• List of electric and electronic consumers, wiring diagrams and terminal clamp diagrams
• Functions drawing, spare & wearing parts list, material evidence and engineering record

Why Berg
Berg GaseTech engineers and manufactures OXYBERG® PSA oxygen generators in Germany and supplies integrated plug-and-play skid systems. System integration, on-site commissioning, operator training and service are delivered within the same group to provide combined manufacturer + integrator support, off-the-shelf wear parts and extended warranty options.

Quality monitoring and special options

• O₂ purity is monitored continuously at the generator outlet by integrated purity and pressure sensors.
• 93 % O₂ configurations can be engineered for projects requiring European Pharmacopoeia monograph 2455 compliance; final delivered gas quality must be verified for the installed system and operating conditions.
• Final CE marking and conformity assessment depend on configuration and completion of the applicable procedures.

Technical specifications

• Product family: OXYBERG® PSA Oxygen Plant (plug-and-play skid)
• O₂ purity (standard): 90 % – 95 %; 93 % option available for pharmacopeia compliance
• Available pre-engineered configurations: OXYBERG® 500, 600, 700, 800, 900, 1000
• O₂ buffer vessel sizes (by model): 90 L (500/600), 150 L (700), 250 L (800), 350 L (900), 500 L (1000)
• Air receiver volumes (by model): 90 L (500), 150 L (600/700), 350 L (800), 500 L (900/1000)
• Integrated compressor options: KOMPBERG® BSDK7 (OXYBERG® 500–900), KOMPBERG® BSDKF11/13 (OXYBERG® 1000); optional delivery without compressor for suitable site-supplied compressed air
• System delivered pre-assembled, pre-piped, pre-wired and factory-tested on a common base frame
• Continuous purity and pressure monitoring at generator outlet
• Standard warranty: 3 years; extendable up to 5 years with a service contract
• Certifications / conformity reference: PED 2014/68/EU · NB 2912
• Manufacturer: Berg GaseTech (design & production of OXYBERG® in Germany)
