DIN workpiece clamping chuck 2405-160-45K SGMfor turning applicationssteel3-jaw
Add to favorites
Compare this product
Characteristics
- Machine mount
- DIN
- Application
- for turning applications
- Other characteristics
- steel
- Number of jaws
- 3-jaw
- Clamping range
160 mm
(6.3 in)
Description
Product overview

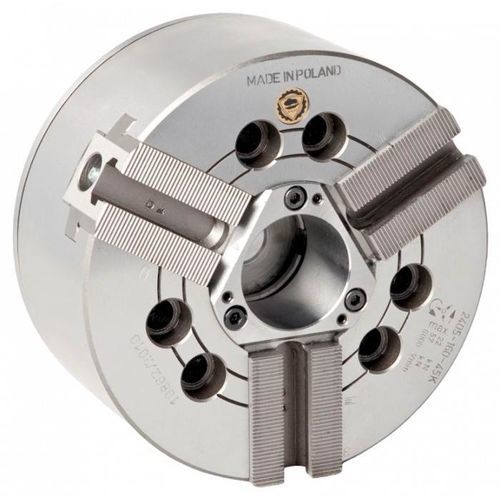

3-jaw power chuck 2405-160-45K SGM with through-hole for securing workpieces on lathes and turning centers. Plain back mount (DIN 6353). Size: 160 mm. Jaws: 2-piece jaws (soft 2-piece jaws option). Body material: steel. Through-hole: yes.
Key features
Technical specifications
Applications
3-jaw power chuck 2405-160-45K SGM with through-hole for securing workpieces on lathes and turning centers. Plain back mount (DIN 6353). Size: 160 mm. Jaws: 2-piece jaws (soft 2-piece jaws option). Body material: steel. Through-hole: yes.
Key features
- Model: 2405-160-45K SGM
- SKU: 352405203001
- USA SKU: 7-781-0600
- Size: 160 mm
- Number of jaws: 3
- Type of jaws: 2-piece jaws (soft 2-piece option)
- Mounting: plain back mount (DIN 6353)
- Measurement unit: metric
- Body material: steel
- Through-hole: yes
- Chucks with large through-hole: no
- Integrated cylinder: no
Technical specifications
- Product type: power chuck, 3-jaw, through-hole
- Mounting standard: DIN 6353
- Jaws configuration: 2-piece, soft jaw option available
- Material: steel body
- Units: metric
- Model / Product code: 2405-160-45K SGM
Applications
- Workpiece clamping on lathes and CNC turning centers
- Suitable for turning operations requiring through-spindle bar feeding
- Compatible with machines using plain back mounting per DIN 6353
