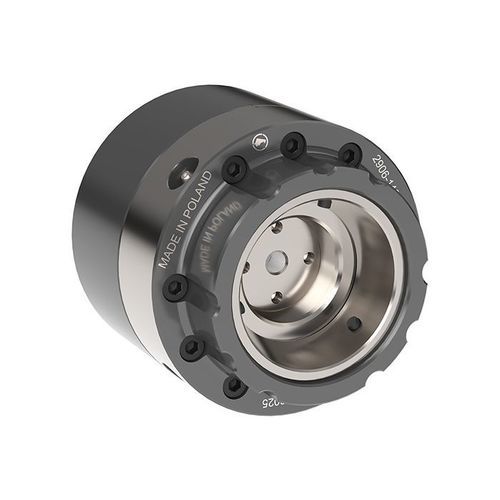

Collet workpiece clamping chuck 2906-160-52-140for turning applicationssteelmetric
Add to favorites
Compare this product
Characteristics
- Clamping method
- collet
- Application
- for turning applications
- Other characteristics
- steel, metric
- Clamping range
52 mm
(2.05 in)
Description
Overview
The 2906 POWER CHUCK is a collet-type power chuck designed for Rubber Flex GT clamping heads to mount shafts and rods across a range of diameters. It is suitable for machining soft or easily deformable materials, ensuring secure clamping and enabling quick clamping-head changes with a head changing gun.
Key features
Technical specifications
Applications
Recommended for turning and machining of shafts, bars and soft materials where low-deformation, uniform clamping is required. Compatible with Rubber Flex GT clamping heads and rapid head-change systems for efficient workshop operation.
Ordering & logistics
The 2906 POWER CHUCK is a collet-type power chuck designed for Rubber Flex GT clamping heads to mount shafts and rods across a range of diameters. It is suitable for machining soft or easily deformable materials, ensuring secure clamping and enabling quick clamping-head changes with a head changing gun.
Key features
- Collet-type jaws for even radial clamping
- Size 160 with collet capacity 52 mm
- Steel body with metric dimensions
- Through-hole present for bar feeding
- Plain back mount (DIN 702-4) for direct spindle installation
Technical specifications
- Model / series: 2906 series
- Commercial name: POWER CHUCK 2906-160-52-140
- Size: 160
- Collet size: 52
- Type of jaws: Collet
- Mounting: Plain back mount (DIN 702-4)
- Measurement unit: metric
- Body material: Steel
- Through-hole: Yes
- Chucks with large through-hole: No
- Integrated with a cylinder: No
Applications
Recommended for turning and machining of shafts, bars and soft materials where low-deformation, uniform clamping is required. Compatible with Rubber Flex GT clamping heads and rapid head-change systems for efficient workshop operation.
Ordering & logistics
- SKU: 352906030500
- Price (Excl. VAT): 2,138.00 EUR
