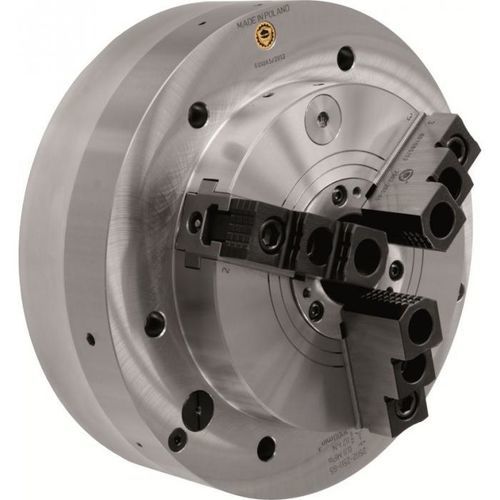

Workpiece clamping chuck for turning applications 2502-250-65

direct mountingsteelpneumatic

Overview
3-jaw power chuck with integrated pneumatic cylinder for both inside and outside clamping operations.

Product details (from product specification table)
SKU: 352502031001
SKU USA: 7-785-1000
Promo: No
Size: 250
Product type: 2502-250-65
Type of jaws: Hard 2-piece jaws
Number of jaws: 3
Mounting: Plain back mount
Measurement unit: metric
Body material: Steel
Through-hole: Yes
Large through-hole variant: No
Integrated cylinder: Yes

Characteristics / technical specifications

• 3-jaw power chuck suitable for turning operations requiring internal and external clamping
• Pneumatic cylinder integrated for fast, repeatable inside/outside gripping
• Size 250 with standard metric dimensions
• Model / product type: 2502-250-65
• Hard 2-piece jaws, 3 jaws
• Plain back mounting for direct spindle attachment
• Steel body construction
• Through-hole available; no large through-hole variant
• Integrated pneumatic cylinder for automated actuation
