DIN workpiece clamping chuck 2104-315K SGM

for turning applicationsfor CNC machinessteel

Overview

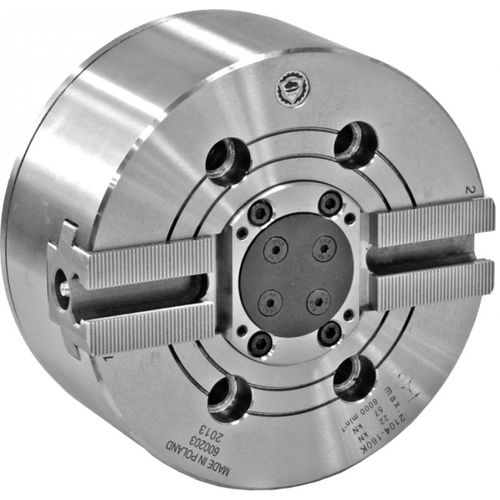

2-jaw power chuck 2104-315K SGM for external clamping on lathes and CNC turning centers. Steel body, plain back mount (DIN 6353), diameter 315 mm. No through-hole — not suitable for bar feeding.

Key features

• Model / product type: 2104-315K SGM
• Chuck type: 2-jaw power chuck (no through-hole)
• Size (diameter): 315 mm
• Number of jaws: 2
• Type of jaws: soft 2-piece jaws
• Mounting: plain back mount (DIN 6353)
• Body material: steel
• Measurement system: metric
• Integrated cylinder: No

Applications

• External clamping for turning and CNC turning center operations
• Clamping medium to large workpieces requiring high gripping force
• Not suitable for operations requiring through-spindle bar feeding or tool passage

Installation and compatibility

• Fits spindles accepting plain back mount according to DIN 6353; verify spindle adapter and bolt pattern before installation
• Use appropriate jaw set and tightening torques based on workpiece material and diameter
• Soft 2-piece jaws allow fine clamping adjustment and reduce marking on the workpiece

Ordering information

• Internal SKU: 352104150200
• SKU (USA): 7-775-1200
• Availability: Out of stock
• Promotion: No
