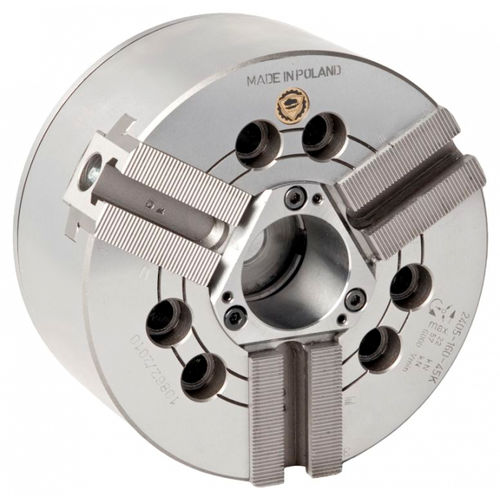

Workpiece clamping chuck for turning applications 2405-315-91K SGM

self-centeringsteel3-jaw

Overview
3-jaw power chuck designed for turning operations. Features a through-hole for bar or tooling passage and supplied with 2-piece soft jaws for controlled gripping.

Key features

• 3-jaw self-centering power chuck
• Through-hole (allows bar/tool passage)
• 2-piece soft jaws for controlled workholding
• Body material: Steel
• Plain back mount conforming to DIN 6353

Product attributes (table)
Promo: No
Size: 315 mm
Product type: 2405-315-91K
Type of jaws: 2-piece jaws / Soft 2-piece jaws
Number of jaws: 3
Mounting: Plain back mount (DIN 6353)
Measurement unit: metric
Body material: Steel
Through-hole: Yes
Chucks with large through-hole: No
Integrated with a cylinder: No

Technical specifications

• Model / Product type: 2405-315-91K
• Size (diameter): 315 mm
• Number of jaws: 3
• Type of jaws: 2-piece jaws (soft 2-piece jaws)
• Mounting: Plain back mount (DIN 6353)
• Measurement unit: metric
• Body material: Steel
• Through-hole: Yes
• Chucks with large through-hole: No
• Integrated with a cylinder: No
• SKU: 7-781-1200
