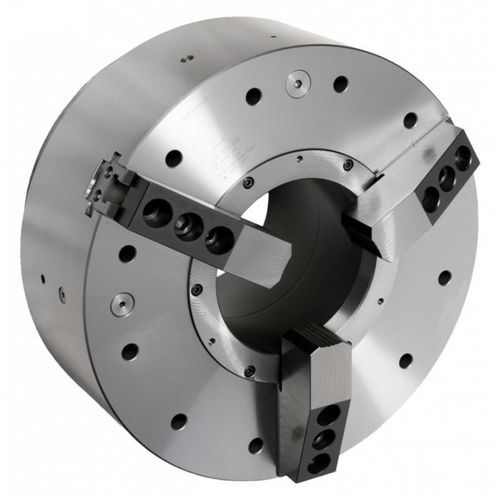

Workpiece clamping chuck for turning applications 2500-500-230

direct mountingsteelpneumatic

Short description
Self-contained 3-jaw power chuck with integrated pneumatic cylinder, suitable for turning operations that require a large through-hole (500 mm). Designed for plain-back mounting on industrial lathes.

Key features

• 3 jaws with hard 2-piece jaw set
• Integrated pneumatic cylinder for clamping actuation
• Large through-hole (500 mm) for bar or long-part processing
• Plain back mount for direct lathe attachment
• Steel body for machine-tool environments

Technical specifications

• Product type / Model: 2500-500-230
• Size: 500 mm
• Number of jaws: 3
• Type of jaws: 2-piece jaws; Hard 2-piece jaws
• Mounting: Plain back mount
• Measurement unit: metric
• Body material: Steel
• Through-hole: Yes (large)
• Integrated cylinder: Yes (pneumatic)
• SKU: 352500080001
• SKU USA: 7-785-2000
• Displayed price: $47,906.00

Product attachments

• Catalogue page (218.59 kB)
• Technical data (651.64 kB)
• Instruction Manual (3.09 MB)
