Workpiece clamping chuck for turning applications 2615-720-340-P

for CNC machinessteel4-jaw

Overview

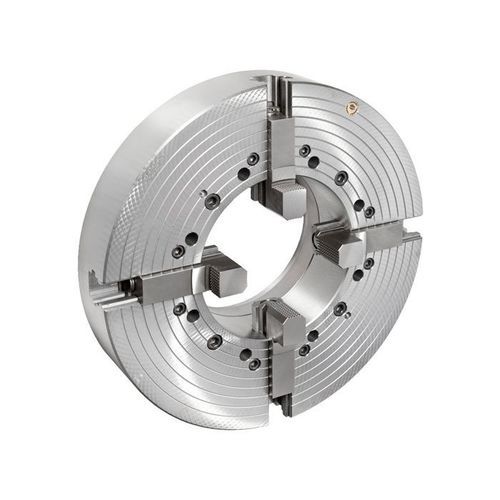

4-jaw power chuck with gear transmission system providing synchronized jaw movement for reliable radial clamping. Equipped with hardened solid jaws and a large through-hole for bar feeding and machining long workpieces. Mounting: Type A; measurement unit: metric.

Applications

• Turning operations on CNC and conventional lathes
• Bar feeding and machining of long shafts
• Workpieces requiring axial access through the spindle
• Integration on machines with Type A spindle interface

Key features

• Gear-driven synchronized 4-jaw power chuck
• Hardened solid jaws (replaceable) for secure clamping
• Large through-hole for bar passage and coolant flow
• Steel body for structural stability
• No integrated cylinder — requires external actuation

Technical specifications

• SKU: 352615081700
• SKU USA: 7-755-2813P
• Product type / Model: 2615-720-340-P
• Size: 720 mm
• Number of jaws: 4
• Type of jaws: hardened solid jaws
• Mounting: Type A mount
• Measurement unit: metric
• Body material: Steel
• Through-hole: Yes (large through-hole)
• Integrated cylinder: No
• Stock status: Out of Stock
• Price (Excl. VAT): €32,353.00
