Workpiece clamping chuck for turning applications 2605-250-75K SGM

for internal turningfor external turningfor CNC lathes

Overview

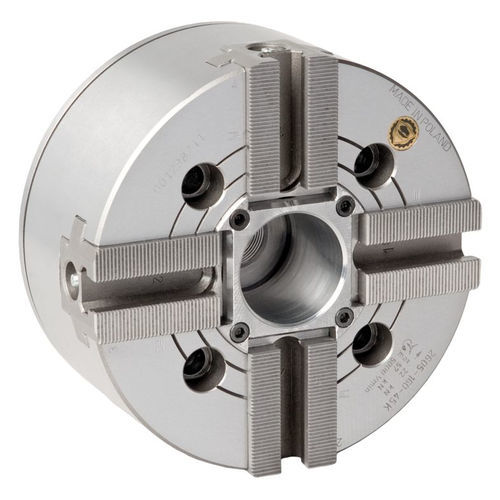

4-jaw power chuck with through-hole designed for CNC lathes and turning centers. Size 250 mm, soft 2-piece jaws, plain back mount (DIN 6353) and steel body. Suited for bar feeding and operations requiring repeatable, secure clamping for external and internal turning.

More information (product table)
Promo: No
Size: 250 mm
Product type: 2605-250-75K
Type of jaws: Soft 2-piece jaws
Number of jaws: 4
Mounting: Plain back mount (DIN 6353)
Measurement unit: metric
Body material: Steel
Through-hole: Yes
Chucks with large through-hole: No
Integrated with a cylinder: No

Product attachments

• Catalogue page (215.48 kB)
• Technical data (651.64 kB)
• Instruction Manual (22.08 MB)

Technical specifications

• Internal SKU: 352605060301
• SKU USA: 7-783-1000
• Model / product type: 2605-250-75K
• Size: 250 mm
• Number of jaws: 4
• Type of jaws: 2-piece jaws; Soft 2-piece jaws
• Mounting: Plain back mount (DIN 6353)
• Measurement unit: metric
• Body material: Steel
• Through-hole: Yes
• Chucks with large through-hole: No
• Integrated with a cylinder: No
• Price (incl. VAT): €3,231.21
• Price (excl. VAT): €2,627.00
