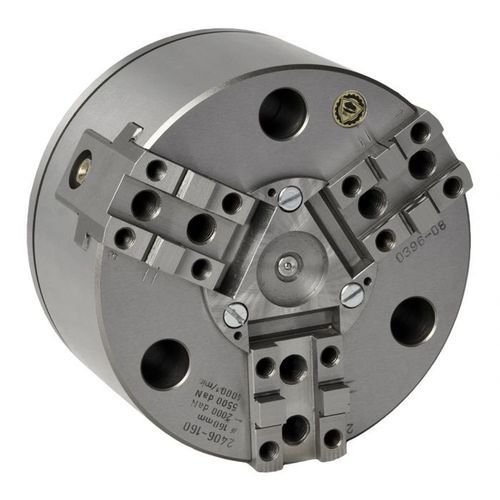

DIN workpiece clamping chuck 2406-160

for turning applicationssteelmetric

Overview
3-jaw power chuck for automatic lathes without through-hole. Size: 160 mm; plain back mount compatible with DIN 6353; steel body; 2-piece base jaws; measurement system: metric.

Applications

• High-volume turning operations on automatic lathes
• Bar-feed production requiring repeatable clamping
• Turning of cylindrical parts when spindle through-hole is not required

Key features

• Model: 2406-160
• Diameter: 160 mm
• 3-jaw self-centering power chuck
• 2-piece base jaws
• Plain back mount (DIN 6353)
• Body material: steel
• No through-hole (solid body)
• Not integrated with a cylinder
• Measurement unit: metric

Documents

• Catalog page (516.87 kB)
• Technical data (954.28 kB)
• User manual (22.08 MB)

Technical specifications

• Sku USA: 7-753-0600
• Product type/model: 2406-160
• Size (diameter): 160
• Number of jaws: 3
• Jaw type: 2-piece jaws (base jaws)
• Mounting: plain back mount (DIN 6353)
• Body material: steel
• Through-hole: No
• Integrated with cylinder: No
• Measurement unit: metric
