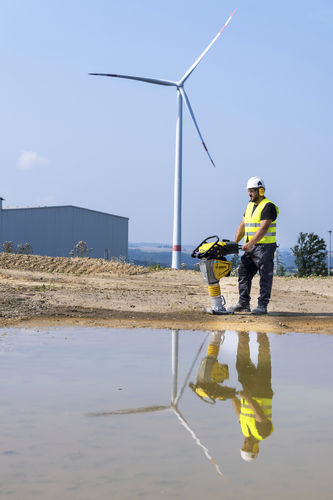

Tamping rammer BT 60 e

Overview
A battery-powered vibratory tamper designed for eco-friendly, low-emission compaction work. Made in Germany. Fully encased brushless motor protects against shocks and dirt. 70 mm stroke and 20 m/min advance deliver compaction performance comparable to conventionally powered tampers. Particularly suitable for trenches, buildings, tunnels and sites with strict emission limits.

Key benefits

• Tough performer: all-round rugged panelling protects motor and components from impacts and dirt.
• Plug and play: quick, tool-free battery change.
• Low running costs: maintenance-free brushless electric drive reduces service needs.
• Clean and compliant: zero exhaust emissions help meet stricter CO2/NOx regulations.
• Performance without compromise: same compaction power as conventional tampers; 70 mm stroke and 20 m/min advance rate.
• Compact and versatile for trench, pipeline, landscaping and repair work.

Standards (included)

• Comfort start
• Maintenance-free brushless electric motor
• Protective motor covering
• Tool-free battery swap
• Vibration-insulated steering handle
• Single-point lifting device
• Protective covering
• Plastic castor as loading aid
• 3-2-1 Warranty

Options

• Battery eP 20 (20 Ah)
• Battery eP 28 (28 Ah)
• Standard charger
• Quick charger
• Transport device with puncture-proof wheels
• Tamper foot widths (160–280 mm)
• Special painting
• Tool kit

Additional product highlights

• Motor: fully encased, brushless electric motor for extra protection and reduced maintenance.
• Battery system: exchangeable battery pack; quick charger allows fast recharging (exchanged battery fully charged again in under 2 hours with quick charger).
• Operator comfort: vibration-insulated steering handle and reduced operator exposure to emissions and noise.
• Transport/load aids: plastic castor as loading aid; single-point lifting device.

Technical specifications

• Model: BT 60 e
• Brand: BOMAG
• Emission stage: e-PERFORMANCE
• Operating weight: 71 kg
• Motor power: 2.3 kW
• Working width: 230 mm
• Stroke: 70 mm
• Advance rate: 20 m/min
• Tamper foot width options: 160–280 mm (optional)
• Batteries (options): eP 20 (20 Ah), eP 28 (28 Ah)
• Charging: standard charger (option), quick charger (option, fast recharge)
• Drive type: maintenance-free electric (brushless) motor
• Notable features: tool-free battery swap; protective motor covering; vibration-insulated handle; single-point lifting device; plastic castor loading aid; transport device with puncture-proof wheels (option)
• Warranty: 3-2-1 scheme
• Application areas: soil compaction for foundations, backfills, trenches, drainage and pipeline construction, landscaping, indoor works and areas with strict emission limits
