Reversible vibratory plate BPR 35/42

compacting

Overview
Reversible vibratory plate BPR 35/42: lightweight compaction unit for soil, asphalt and block paving. Performance class approx. 25–40 kN; typical configuration weight 190 kg; engine power 3.6 kW; working width 420 mm. Suitable for easy transport with optional wheels and for a wide range of site tasks. BOMAG offers models across the series operating weight range of approx. 135–300 kg (series range 120–750 kg).

Fields of application
Soil compaction for foundations and sub-bases, asphalt patching and trench reinstatement, block paving installation on small and medium construction sites. Designed for reversible operation where frequent direction changes and confined spaces are common.

Product highlights

• Height-adjustable, low-vibration steering rod for ergonomic handling

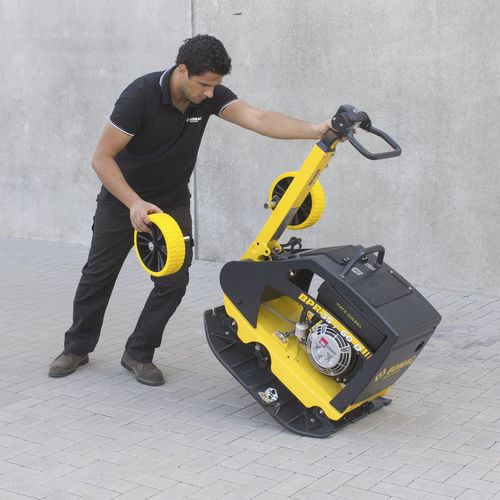

• Robust, quick-fit transport wheels (optional, up to 300 kg) for easy relocation
• Wide-opening engine hood for protection and maintenance access
• Protective engine covering with strategically placed service openings
• Vibration and throttle regulation on the steering rod
• Highly wear-resistant, powder-coated base plate
• Fully protected V-belt
• Automatic shutdown at low oil level (BPR35/42)
• Automatic decompression (BPR35/42D)

Standards (typical)

• Protective engine covering
• Comfort lever control
• Height-adjustable and low-vibration steering rod
• Steering rod lockable in transport and working position
• Vibration and throttle regulation on the steering rod
• Powder-coated base plate
• Fully protected V-belt
• Automatic decompression (BPR35/42D)
• Recoil starter
• Back-up drive protection
• Automatic shutdown at low oil level (BPR35/42)
• 3-2-1 warranty

Options

• Fully closed engine hood in high-strength steel (+10 kg) (BPR35/42D)
• Transport wheels (+5 kg)
• Electric starter and hour meter (+20 kg) (BPR35/42D)
• Tool kit and service kit
• Special paint finish
• Plastic mat
• Hour meter (BPR35/42)
• TOUGH WARRANTY

Multimedia / Documents
Product images, datasheet and product video available illustrating working positions, transport options and hood design.

Technical specifications

• Model: BPR 35/42
• Emission stage: Stage V / CARB P.3
• Weight (typical for this configuration): 190 kg
• Engine power: 3.6 kW
• Working width: 420 mm
• Performance class: approx. 25–40 kN
• Operating weight range (series): approx. 135–300 kg
• Optional transport wheels for models up to 300 kg
• Warranty: 3-2-1 standard
