Gasoline engine rammer BT 50

tamping

Overview

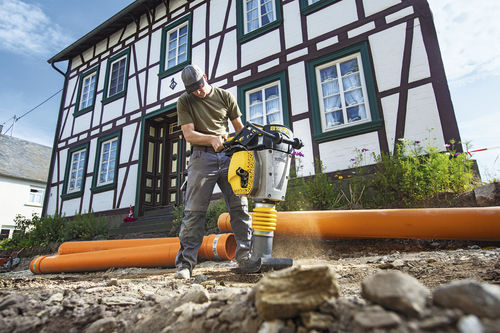

The BT 50 is a petrol-powered, 4-stroke tamper designed for compaction of soil and asphalt in confined areas and prolonged work shifts. It is suitable for trench work, pipeline projects, backfill, foundations, patching and asphalt repair.

Fields of application
Applications include soil compaction for civil engineering foundations, trench and sewage installations, landscaping backfill compaction and repair work on paved surfaces. The design reduces operator effort and supports continuous on-site operation.

Key features

• Two-stage dual paper air filter system for extended service intervals.
• Impact-resistant plastic hood and engine guard for on-site protection and reduced repair costs.
• ON/OFF easy-action safety switch for reliable engine start and shutdown.
• Optional transport wheels and plastic castor for easier handling on site.
• Height-adjustable, vibration-damped guide handle to reduce operator fatigue and adapt to different users.
• Operating hours counter and tachometer with service indicator (hour counter optional on some variants).
• BOMAG lubrication system with automatic oil level check for consistent oil supply at all angles.

Key data
Emission stage: CARB Phase 3
Weight: 58 kg
Power output: 2.8 kW
Working width: 230 mm

Standards (selected)

• Engine protection system
  • Protective engine covering
  • Two-stage paper air filter (self-cleaning)
  • Automatic oil level control
  • Dual fuel filter system
• Vibration-insulated steering handle
• Self-cleaning air filter
• Protective covering
• Single-point lifting device
• Recoil starter
• Plastic castor as loading aid
• Infinitely variable frequency
• Combination engine stop / fuel switch
• 3-2-1 warranty

Options (selected)

• Hour / rpm meter
• Transport device with puncture-proof wheels
• Tamper foot widths (160–330 mm)
• Tamper foot extensions
• Special paint
• Tool kit
• Service kit
• Extended warranty options

Caractéristiques / spécifications techniques

• Model name: BT 50
• Engine: 4-stroke petrol engine (BOMAG BT series)
• Emission certification: CARB Phase 3
• Operating controls: ON/OFF easy-action safety switch; tachometer and service indicator
• Filtration: Two-stage paper/dual air filter system (self-cleaning)
• Lubrication: BOMAG lubrication system with automatic oil level check
• Protection: Impact-resistant plastic hood and engine guard
• Handle: Height-adjustable, vibration-damped guide handle
• Transport: Optional transport wheels and plastic castor as loading aid
• Working width: 230 mm (standard)
• Weight: 58 kg
• Power output: 2.8 kW
• Available tamper foot widths (option): 160–330 mm
